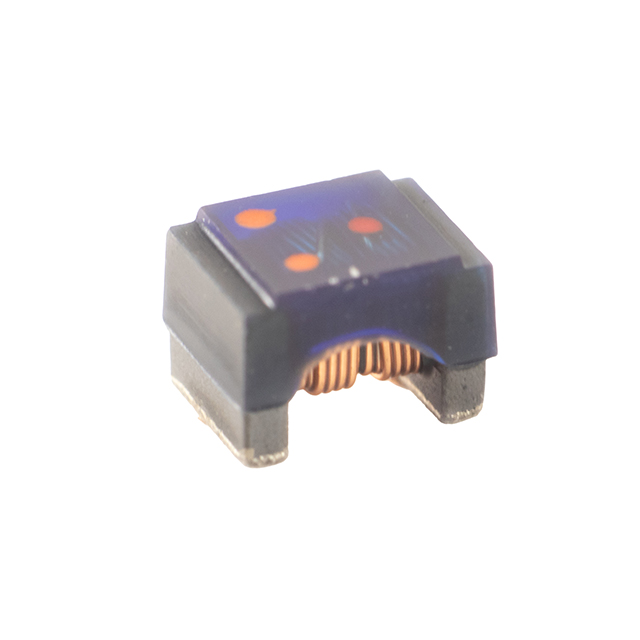

FCHC20-681K-RC

$0.83

Description：680uH +/-10% High Current Chip
Series：FCHC20
Mfr：Allied Components International
Package：Tape & Reel (TR)

SKU:e6c090b14f6d Category: Fixed Inductors Brand: Allied Components International

Consult the customer manager about the wholesale price.

consultation hotline：86-132-6715-2157

email：[email protected]
Contact the product manager for consultation. One-stop consultation is available.

Do you want a lower wholesale price? Please send us your inquiry and we will reply immediately.

Product introduction

FCHC20-681K-RC is listed in the Fixed Inductors range at ChipApex. The manufacturer field lists Allied Components International. Its product description is 680uH +/-10% High Current Chip. Review the specifications below when checking this part for your BOM.

Fixed Inductors specifications for FCHC20-681K-RC

Description：680uH +/-10% High Current Chip
Series：FCHC20
Mfr：Allied Components International
Package：Tape & Reel (TR)
Type：Wirewound
Material - Core：Ferrite
Inductance：680 µH
Tolerance：±10%
Current Rating (Amps)：-
Current - Saturation (Isat)：65mA
Shielding：Unshielded
DC Resistance (DCR)：28Ohm
Q @ Freq：15 @ 796kHz
Frequency - Self Resonant：2MHz
Ratings：-
Operating Temperature：-25°C ~ 105°C
Inductance Frequency - Test：796 kHz
Mounting Type：Surface Mount
Package / Case：1414 (3535 Metric)
Supplier Device Package：1414
Size / Dimension：0.146" L x 0.142" W (3.70mm x 3.60mm)
Height - Seated (Max)：0.114" (2.90mm)
Features：-

Fixed Inductors datasheet and documents for FCHC20-681K-RC

FCHC20-681K-RC

Fixed Inductors Overview

The FCHC20-681K-RC is a general purpose inductor manufactured by Allied Components International. It features a single element with a nominal inductance of 680 µH and a tolerance of ±10%. The component utilizes a ferrite core and is designed for through-hole axial mounting. It has a maximum DC resistance of 3.5 Ω and a rated current of 0.2 A. The device operates within a temperature range of -55 °C to +125 °C and is RoHS compliant.
