FD00AA006 is listed in the Power Line Filter Modules range at ChipApex. The manufacturer field lists Curtis Industries. Its product description is LINE FILTER 80VDC 6A CHASS MNT. Review the specifications below when checking this part for your BOM.
Power Line Filter Modules specifications for FD00AA006
- Description：LINE FILTER 80VDC 6A CHASS MNT
- Series：FD
- Mfr：Curtis Industries
- Package：Box
- Filter Type：DC
- Configuration：Single Stage
- Voltage - Rated DC：80V
- Voltage - Rated AC：-
- Current：6:00 AM
- Frequency - Operating：-
- Applications：General Purpose
- Approval Agency：CE, CSA, TUV, UR
- Operating Temperature：-
- Mounting Type：Chassis Mount
- Termination Style：Quick Connect
- Inductance：-
- Voltage - Rated AC (Phase to Ground/Neutral)：-
- Voltage - Rated AC (Phase to Phase)：-
Power Line Filter Modules datasheet and documents for FD00AA006
Power Line Filter Modules Overview

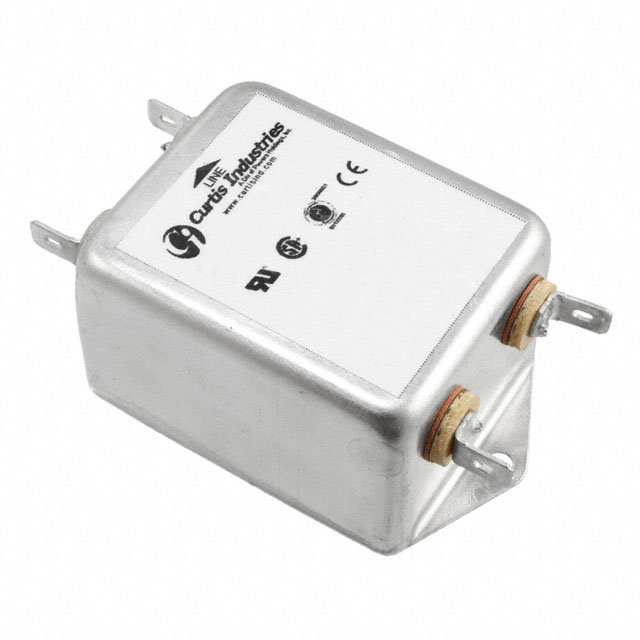

The Curtis Industries FD00AA006 is a DC EMC/EMI line filter designed for chassis mounting. It features a single-stage configuration with wire lead termination. The component is rated for 80V DC and supports a current of 6 A. It holds CE, CSA, TUV, and UR certifications.
Power Line Filter Modules Feature Summary
- Provides electromagnetic interference suppression for direct current circuits
- Utilizes a single-stage filtering architecture
- Designed for secure chassis mounting applications
Power Line Filter Modules Applications
- General purpose DC power line filtering
- Chassis-mounted electronic equipment protection
- DC circuit noise reduction
Power Line Filter Modules Procurement Notes
Verify the specific part number against official Curtis Industries documentation to confirm technical specifications. Ensure compatibility with system voltage and current requirements before integration. Check for updated certification status and RoHS compliance details in the latest datasheet.
Power Line Filter Modules Selection Notes
Select this component for applications requiring DC EMI suppression in chassis-mounted systems. Confirm that the 80V DC rating and 6 A current capacity meet the operational demands. Verify that wire lead termination suits the assembly process.
Power Line Filter Modules Part Context
This component belongs to the Curtis Industries FD Series of power line filter modules. The series offers various configurations for DC applications, providing standardized solutions for electromagnetic interference mitigation in industrial and commercial electronics.
Power Line Filter Modules Replacement Considerations
Consult official manufacturer substitution guides for verified alternatives. Cross-reference electrical ratings and physical dimensions when evaluating potential replacements.
