FD2400042

Oscillators Overview

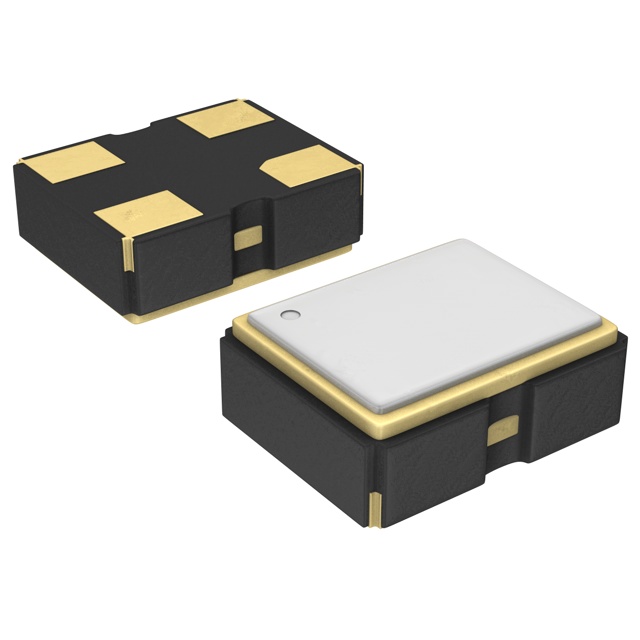

The FD2400042 is a standard clock oscillator manufactured by Diodes Incorporated, operating at a frequency of 24.0000 MHz. It utilizes CMOS output logic and is housed in an SMD surface-mount package with dimensions of 5.0 mm x 3.2 mm. The component supports a supply voltage range of 1.8V to 3.3V and operates within a temperature range of -40°C to +85°C. It features a frequency stability of ±50 ppm and draws a maximum supply current of 5 mA. The device is RoHS compliant and available in tape and reel packaging.

Oscillators Feature Summary

• Generates precise 24 MHz clock signals using CMOS output technology
• Supports low-voltage operation across 1.8V to 3.3V supply rails
• Ensures reliable timing performance with ±50 ppm frequency stability
• Designed for industrial environments with extended temperature range capability

Oscillators Applications

• Embedded system clock generation
• Microcontroller timing sources
• Digital signal processing circuits
• Communication interface synchronization

Oscillators Procurement Notes

Verify the specific ordering suffix to confirm packaging quantity and tape specifications, as variations may exist between standard reels and cut tape options. Ensure the selected variant matches the required supply voltage and load capacitance for the target circuit design. Confirm RoHS compliance status through official manufacturer documentation prior to integration into regulated assemblies.

Oscillators Selection Notes

Select this component when a stable 24 MHz reference is required for CMOS-compatible digital logic. Consider the 4-SMD footprint constraints and verify that the 5 mA current consumption aligns with power budget requirements. Evaluate the ±50 ppm stability against system jitter tolerance needs and ensure the -40°C to +85°C range covers the operational environment.

Oscillators Part Context

This part belongs to the standard clock oscillator family from Diodes Incorporated, designed for general-purpose timing applications. It replaces older discrete crystal solutions by integrating the resonator and oscillator circuit into a single compact surface-mount package. The series offers consistent performance for cost-sensitive consumer and industrial electronics requiring precise frequency control.

Oscillators Replacement Considerations

Direct substitutes include other 24 MHz CMOS oscillators in 5.0x3.2mm packages from manufacturers such as Epson or SiTime, provided pinout compatibility and electrical parameters match.
