FDC2310

Overview

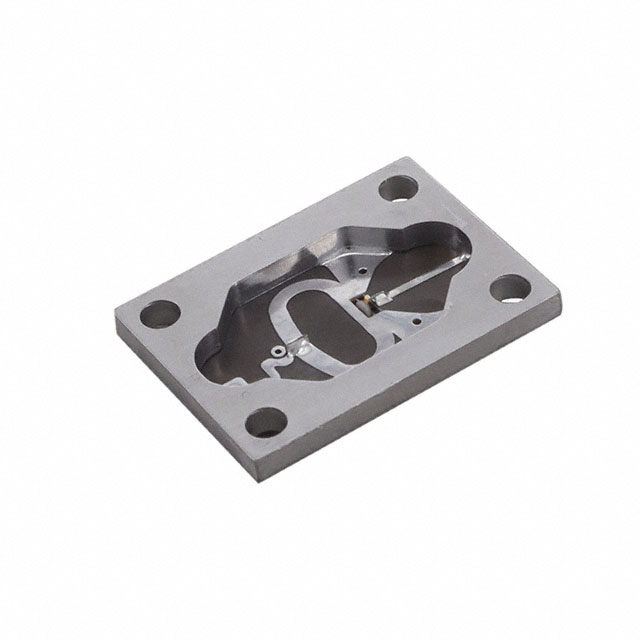

The FDC2310 is an open carrier frequency doubler manufactured by MACOM Technology Solutions. It operates within a frequency range of 3 GHz to 16 GHz. This component is designed for general-purpose RF applications requiring frequency multiplication.

Feature Summary

• Functions as an open carrier frequency doubler
• Operates across the 3 GHz to 16 GHz frequency spectrum

Applications

• General purpose RF IC driver applications

Procurement Notes

Verify the specific datasheet version and pinout configuration before integration, as open carrier doublers require precise impedance matching. Confirm that the operating frequency falls strictly within the 3 GHz to 16 GHz range specified in the official documentation. Ensure thermal management aligns with the device's power dissipation characteristics under load.

Selection Notes

Select this component when a wideband frequency doubling solution is required between 3 GHz and 16 GHz. It is suitable for systems needing an open carrier topology rather than packaged multiplier modules. Evaluate system requirements against the specified operational bandwidth to ensure compatibility with the target RF architecture.

Part Context

MACOM Technology Solutions specializes in high-performance analog semiconductor solutions for RF, microwave, millimeter-wave, and optical applications. The company provides components for telecommunications, data centers, and industrial markets. The FDC2310 belongs to their portfolio of RF integrated circuits designed for signal processing and frequency conversion tasks.

Replacement Considerations

Publicly confirmed substitute part numbers are not available in the provided source material.
