FDMS86500L is listed in the Single FETs, MOSFETs range at ChipApex. The manufacturer field lists onsemi. Its product description is MOSFET N-CH 60V 25A/80A 8PQFN. Review the specifications below when checking this part for your BOM.
Single FETs, MOSFETs specifications for FDMS86500L
- Description：MOSFET N-CH 60V 25A/80A 8PQFN
- Series：PowerTrench®
- Mfr：onsemi
- Package：Tape & Reel (TR),Cut Tape (CT)
- FET Type：N-Channel
- Technology：MOSFET (Metal Oxide)
- Drain to Source Voltage (Vdss)：60 V
- Current - Continuous Drain (Id) @ 25°C：25A (Ta), 80A (Tc)
- Drive Voltage (Max Rds On, Min Rds On)：4.5V, 10V
- Rds On (Max) @ Id, Vgs：2.5mOhm @ 25A, 10V
- Vgs(th) (Max) @ Id：3V @ 250µA
- Gate Charge (Qg) (Max) @ Vgs：165 nC @ 10 V
- Vgs (Max)：±20V
- Input Capacitance (Ciss) (Max) @ Vds：12530 pF @ 30 V
- FET Feature：-
- Power Dissipation (Max)：2.5W (Ta), 104W (Tc)
- Operating Temperature：-55°C ~ 150°C (TJ)
- Grade：-
- Qualification：-
- Mounting Type：Surface Mount

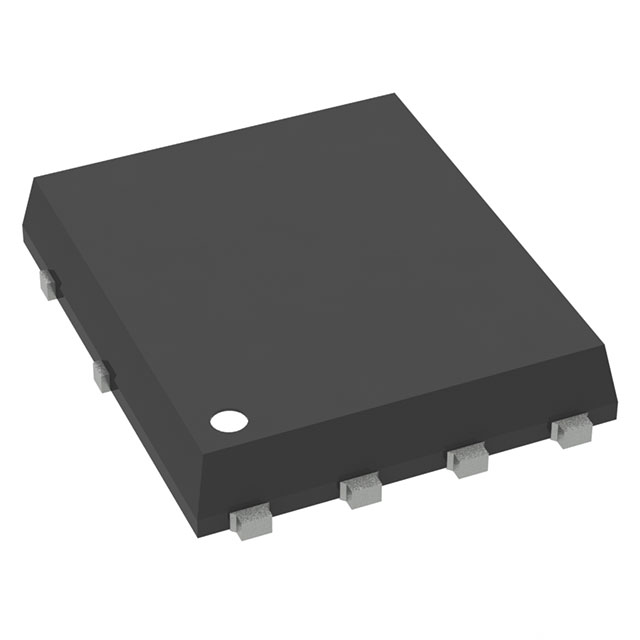

- Supplier Device Package：8-PQFN (5x6)
- Package / Case：8-PowerTDFN
Single FETs, MOSFETs datasheet and documents for FDMS86500L
Single FETs, MOSFETs Overview
The FDMS86500L is a single N-channel PowerTrench MOSFET manufactured by onsemi. It features a 60V drain-source breakdown voltage and a continuous drain current of 25A. The device exhibits a maximum on-resistance of 2.5mΩ at VGS=10V. Gate characteristics include a threshold voltage of 1V and a total gate charge of 165nC. It operates within a temperature range of -55°C to +150°C, with a power dissipation rating of 104W. The component utilizes the Power-56-8 surface-mount package.
Single FETs, MOSFETs Feature Summary
- Utilizes PowerTrench technology for enhanced switching performance and low conduction losses.
- Features an enhancement mode N-channel configuration for efficient control in power circuits.
- Designed for surface-mount installation using the Power-56-8 package format.
Single FETs, MOSFETs Applications
- DC-DC converter designs
- Communication power supply secondary rectification
- High-end server and workstation power management
Single FETs, MOSFETs Procurement Notes
Verify the specific suffix 'L' against official datasheets to confirm packaging details such as reel or cut tape specifications. Ensure compatibility with standard SMD/SMT assembly processes. Confirm RoHS and REACH compliance status through manufacturer documentation before integration into final products.
Single FETs, MOSFETs Selection Notes
Select this component when a 60V rating and 25A continuous current capability are required. The 2.5mΩ on-resistance supports efficient power handling. Consider the Power-56-8 package for board space constraints. Verify thermal requirements against the 104W dissipation rating for the intended application environment.
Single FETs, MOSFETs Part Context
This part belongs to the FDMS86500 series of N-channel MOSFETs from onsemi. It shares the 60V voltage class with variants like the FDMS86500DC but differs in packaging and specific electrical parameters. The PowerTrench branding indicates its position within the manufacturer's mid-voltage silicon MOSFET portfolio.
Single FETs, MOSFETs Replacement Considerations
Direct substitutes may include other 60V N-channel MOSFETs in similar packages. Verify pinout compatibility and ensure on-resistance and current ratings meet or exceed original specifications. Cross-reference with the FDMS86500DC if DualCool packaging is acceptable.
