FDSD0630-H-2R2M=P3

Fixed Inductors Overview

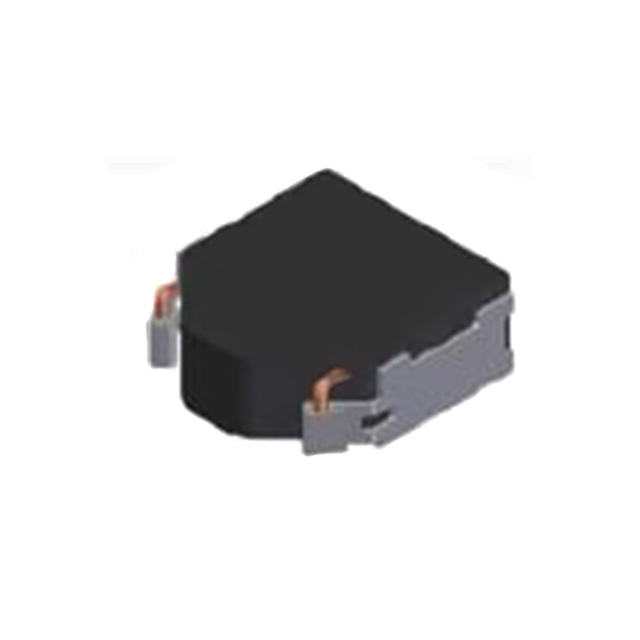

The FDSD0630-H-2R2M=P3 is a shielded surface-mount power inductor from Murata Electronics, designed for high-current applications. It features a wirewound construction with a ferrite core and operates within a temperature range of -40°C to +125°C. Key electrical specifications include an inductance of 2.2 µH with a ±20% tolerance, measured at a test frequency of 100 kHz. The component supports a maximum DC current of 7.1 A and exhibits a maximum DC resistance of 17 mΩ. Its physical dimensions are 7 mm in length, 6.6 mm in width, and 3 mm in height, housed in the 2726 package style.

Fixed Inductors Feature Summary

• Shielded wirewound design utilizing a ferrite core to minimize electromagnetic interference
• Robust thermal performance rated for operation up to 125°C
• High current handling capability suitable for demanding power circuits

Fixed Inductors Applications

• Power supply modules
• DC-DC converter circuits
• Motor drive systems

Fixed Inductors Procurement Notes

Verify component authenticity through authorized distributors or direct manufacturer channels. Confirm RoHS compliance status and specific packaging requirements such as cut tape or reel quantities prior to ordering. Ensure storage conditions adhere to moisture sensitivity guidelines to maintain reliability during assembly processes.

Fixed Inductors Selection Notes

Select this component when designing circuits requiring compact shielding and high saturation current. Compare against alternatives based on DCR limits and thermal dissipation needs. Validate footprint compatibility with existing PCB layouts and ensure operating temperatures align with system environmental constraints.

Fixed Inductors Part Context

This part belongs to the FDSD series of fixed power inductors manufactured by Murata Electronics. The series is characterized by shielded magnetic structures and SMD packaging options. It serves as a passive energy storage element in electronic power conversion architectures.

Fixed Inductors Replacement Considerations

Consult official Murata documentation for verified substitute part numbers. Cross-reference technical parameters including inductance, current ratings, and physical dimensions before implementing any alternative components in production designs.
