FDZ5013

Overview

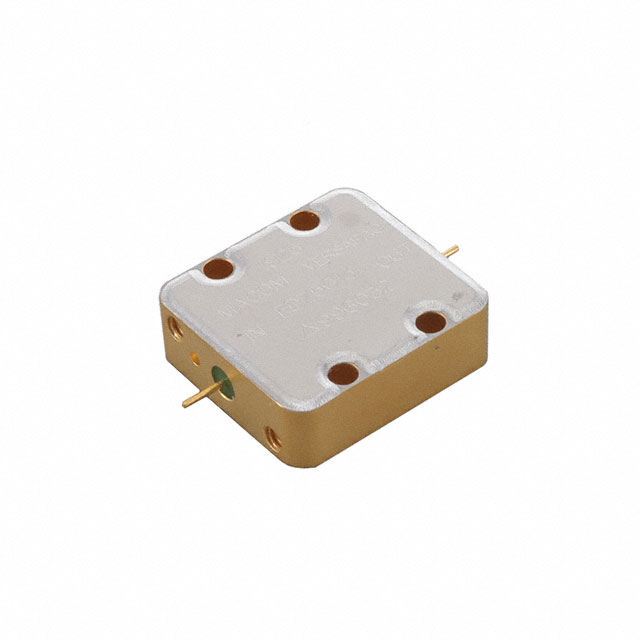

The FDZ5013 is a passive bridge diode frequency doubler manufactured by MACOM Technology Solutions. It operates within the 3GHz to 12GHz input frequency range, doubling the signal for RF applications. The component is designed for use in military, commercial, and test equipment environments. It belongs to the RF Wireless Miscellaneous product category under Wireless & RF Integrated Circuits.

Feature Summary

• Passive bridge diode architecture
• Frequency doubling capability
• Broadband operation from 3GHz to 12GHz

Applications

• Military equipment
• Commercial systems
• Test equipment
• RF signal processing

Procurement Notes

Verify availability through authorized distributors as supply status may vary. Confirm specific ordering suffixes if required for packaging or variant selection. Ensure compatibility with system requirements before procurement. Check datasheet for handling precautions.

Selection Notes

Select this component for applications requiring passive frequency doubling in the 3-12GHz range. Consider its suitability for military and commercial environments. Evaluate integration into RF signal processing chains. Verify interface and package requirements against design specifications.

Part Context

The FDZ5013 is part of MACOM's portfolio of RF and microwave semiconductor products. It serves as a specialized integrated circuit for wireless communications and defense applications. The device supports high-frequency signal generation and processing tasks.

Replacement Considerations

Check for direct substitutes like FDZ5013C-1. Verify functional equivalence and pinout compatibility. Consult official documentation for approved replacement lists.
