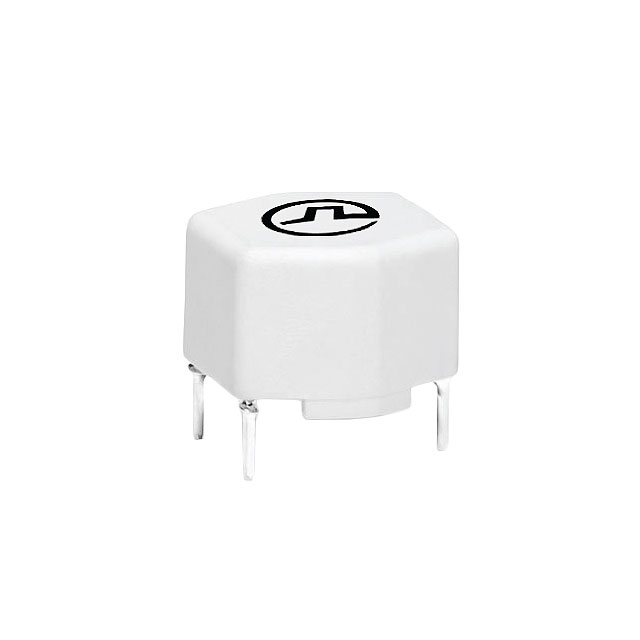

FE2X07-3-3NL is listed in the Common Mode Chokes range at ChipApex. The manufacturer field lists Pulse Electronics. Its product description is CMC 1.2A 2LN TH. Review the specifications below when checking this part for your BOM.
Common Mode Chokes specifications for FE2X07-3-3NL
- Description：CMC 1.2A 2LN TH
- Series：FE2X
- Mfr：Pulse Electronics
- Package：Tube
- Filter Type：Power Line
- Number of Lines：2
- Current Rating (Max)：1.2A
- DC Resistance (DCR) (Max)：39mOhm
- Voltage Rating - DC：-
- Voltage Rating - AC：250V
- Operating Temperature：-40°C ~ 125°C
- Ratings：-
- Approval Agency：-
- Features：-
- Mounting Type：Through Hole
- Size / Dimension：0.705" L x 0.705" W (17.91mm x 17.91mm)
- Height (Max)：0.508" (12.90mm)
- Package / Case：Horizontal, 4 PC Pin
- Inductance @ Frequency：-
- Impedance @ Frequency：-
Common Mode Chokes datasheet and documents for FE2X07-3-3NL
Common Mode Chokes Overview
The FE2X07-3-3NL is a through-hole common mode choke manufactured by Pulse Electronics. It features an inductance of 6800 uH and a maximum DC resistance of 39 mOhms. The component supports a current rating of 1.2 A and operates within a temperature range of -40°C to 125°C. Designed for two-line applications, it provides electromagnetic interference suppression with a voltage rating of 250 V AC.
Common Mode Chokes Feature Summary
- Provides effective electromagnetic interference suppression for two-line circuits
- Constructed for through-hole mounting on printed circuit boards
- Operates reliably across extended industrial temperature ranges
Common Mode Chokes Applications
- Consumer electronics power supply filtering
- Industrial control system noise reduction
- General-purpose EMI suppression in low-to-moderate power circuits
Common Mode Chokes Procurement Notes
Verify the specific package type and lead-free status against the manufacturer's latest datasheet before integration. Confirm that the 1.2 A current rating and 6800 uH inductance meet the design requirements for the target application environment. Ensure compatibility with existing assembly processes for through-hole components.
Common Mode Chokes Selection Notes
Select this component when a high-inductance common mode choke is required for two-line suppression in through-hole designs. The 39 mOhm DC resistance indicates suitability for applications where minimal voltage drop is critical. Consider the 250 V AC rating for mains-connected or higher voltage signal lines requiring isolation and filtering.
Common Mode Chokes Part Context
This part belongs to the common mode chokes category from Pulse Electronics. It is designed for suppression applications rather than energy storage. The through-hole construction distinguishes it from surface-mount alternatives in the manufacturer's portfolio, offering mechanical stability for specific board layouts.
Common Mode Chokes Replacement Considerations
No public confirmed substitute part numbers are available in the provided documentation. Verify pinout and electrical specifications carefully if considering alternative manufacturers for equivalent performance.
Common Mode Chokes FAQ
What is the maximum DC resistance of the FE2X07-3-3NL?
The maximum DC resistance is 39 mOhms.
Is the FE2X07-3-3NL suitable for high-frequency switching applications?
It is designed for general-purpose EMI suppression with a 6800 uH inductance, typically used for lower frequency noise filtering rather than high-frequency switching energy storage.
