FE2X10-4-2NL

Common Mode Chokes Overview

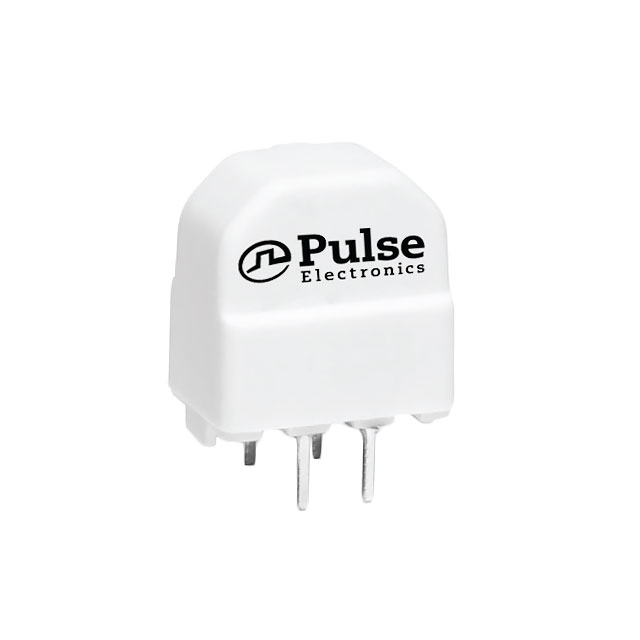

The FE2X10-4-2NL is a two-line through-hole common mode choke manufactured by Pulse Electronics. It features an inductance of 10,000 uH and a maximum DC resistance of 410 mOhms. The component supports a current rating of 1.2 A and operates within a temperature range of -40°C to +125°C. Designed for robust noise suppression, it complies with RoHS standards and utilizes a lead-free construction suitable for industrial applications.

Common Mode Chokes Feature Summary

• Provides effective common mode noise attenuation for dual-line circuits
• Utilizes through-hole mounting for secure mechanical attachment
• Constructed with lead-free materials compliant with environmental regulations

Common Mode Chokes Applications

• Industrial control systems requiring EMI suppression
• Power supply input filtering stages
• Data line protection against common mode interference

Common Mode Chokes Procurement Notes

Verify the specific datasheet revision to confirm exact physical dimensions and thermal characteristics before integration. Ensure that the through-hole footprint matches the target PCB design constraints. Confirm that the 1.2 A current rating aligns with the operational requirements of the intended circuit application.

Common Mode Chokes Selection Notes

Select this component when high inductance values are required for low-frequency noise suppression in through-hole designs. Consider the 410 mOhms DC resistance impact on power loss. Evaluate the physical size constraints relative to other available common mode chokes in the Pulse Electronics portfolio.

Common Mode Chokes Part Context

This part belongs to the FE2X series of common mode chokes from Pulse Electronics. The series focuses on through-hole solutions for general-purpose noise suppression. It complements the manufacturer's surface mount offerings by providing durable options for environments requiring robust mechanical stability.

Common Mode Chokes Replacement Considerations

Consult official substitution guides for equivalent inductance and current ratings. Verify pin compatibility and physical footprint alignment before replacing existing components in established designs.
