FES16GTR

Single Diodes Overview

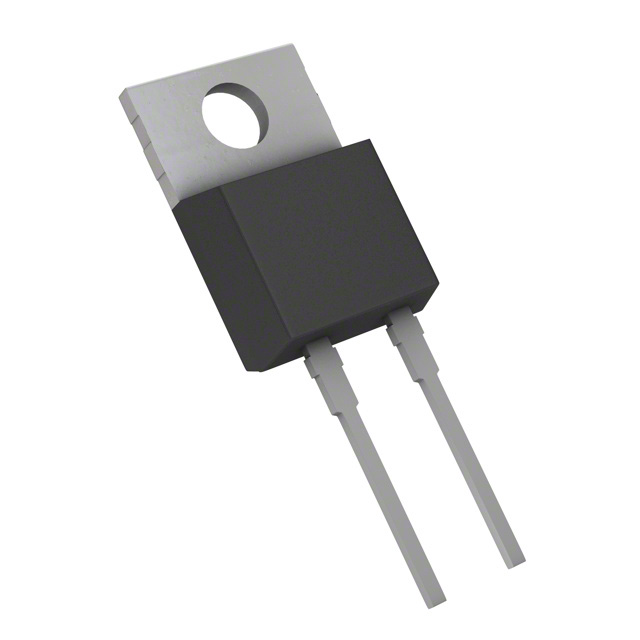

The FES16GTR is a general-purpose standard recovery rectifier manufactured by onsemi. It features a maximum average forward rectified current of 16 A and a repetitive peak reverse voltage of 400 V. The device utilizes a single diode configuration housed in a TO-220AC (TO-220-2) package. This component is designed for applications requiring reliable power conversion with standard switching characteristics.

Single Diodes Feature Summary

• High current handling capability suitable for power supply circuits
• Robust thermal performance enabled by the TO-220AC leaded package
• General-purpose design optimized for broad industrial and commercial use

Single Diodes Applications

• General purpose rectification in AC/DC converters
• Free-wheeling diodes in DC/DC converter topologies
• Power supply output stages

Single Diodes Procurement Notes

Verify the specific suffix to confirm the exact packaging variant, as distributors may list tube or reel options. Ensure the procurement channel provides traceability documentation consistent with onsemi standards. Cross-reference the datasheet revision date to confirm technical specifications match the production batch requirements for your design.

Single Diodes Selection Notes

Select this component when a 16 A current rating and 400 V blocking voltage are required for standard recovery applications. The TO-220AC package offers a balance of thermal dissipation and mounting simplicity compared to surface-mount alternatives. Evaluate thermal resistance parameters against your heatsinking strategy to ensure junction temperature limits are not exceeded during continuous operation.

Single Diodes Part Context

This rectifier belongs to onsemi's portfolio of discrete semiconductor devices, specifically within the standard recovery diode category. These components support the company's broader focus on intelligent power solutions by providing essential passive switching elements for power management systems. The product line serves various sectors including industrial automation and consumer electronics infrastructure.

Single Diodes Replacement Considerations

Consult official cross-reference lists for verified substitutes. Generic replacements must match the 16 A current rating, 400 V reverse voltage, and TO-220AC package footprint to maintain mechanical and electrical compatibility without redesigning the PCB layout.
