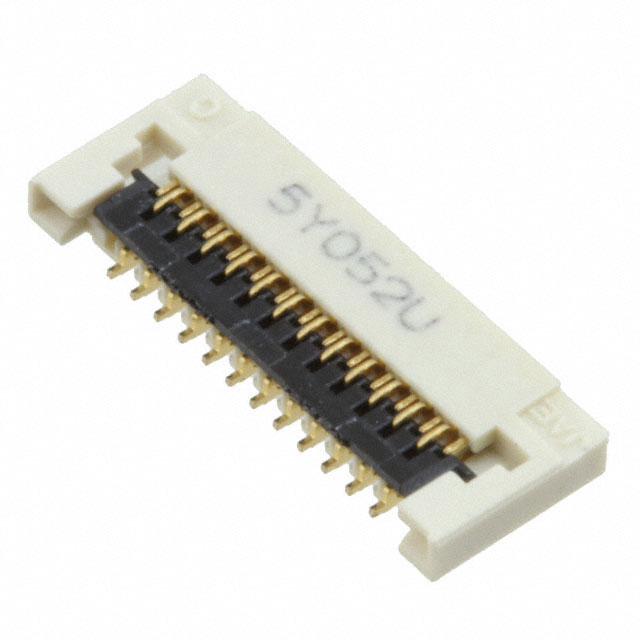

FFC, FPC (Flat Flexible) Connector Assemblies FF0225SS1 product image

FF0225SS1

$2.85

Description：CONN FPC BOTTOM 25POS 0.3MM R/A
Series：FF02
Mfr：JAE Electronics
Package：Tray

SKU:89b0e045454f Category: FFC, FPC (Flat Flexible) Connector Assemblies Brand: JAE Electronics

ChipApex WhatsApp

Consult the customer manager about the wholesale price.

consultation hotline：86-132-6715-2157

email：[email protected]
Contact the product manager for consultation. One-stop consultation is available.

Do you want a lower wholesale price? Please send us your inquiry and we will reply immediately.

Product introduction

FF0225SS1 is listed in the FFC, FPC (Flat Flexible) Connector Assemblies range at ChipApex. The manufacturer field lists JAE Electronics. Its product description is CONN FPC BOTTOM 25POS 0.3MM R/A. Review the specifications below when checking this part for your BOM.

FFC, FPC (Flat Flexible) Connector Assemblies specifications for FF0225SS1

Description：CONN FPC BOTTOM 25POS 0.3MM R/A
Series：FF02
Mfr：JAE Electronics
Package：Tray
Flat Flex Type：FPC
Mounting Type：Surface Mount, Right Angle
Connector/Contact Type：Contacts, Bottom
Number of Positions：25
Pitch：0.012" (0.30mm)
Termination：Solder
FFC, FCB Thickness：0.12mm
Height Above Board：0.047" (1.20mm)
Locking Feature：Flip Lock
Cable End Type：Straight
Contact Material：Copper Alloy
Contact Finish：Gold
Housing Material：Liquid Crystal Polymer (LCP)
Actuator Material：Polyphenylene Sulfide (PPS)
Features：Zero Insertion Force (ZIF)
Voltage Rating：50V
Operating Temperature：-40°C ~ 85°C
Material Flammability Rating：UL94 V-0

FFC, FPC (Flat Flexible) Connector Assemblies datasheet and documents for FF0225SS1
