FF10M70000S0A5

Overview

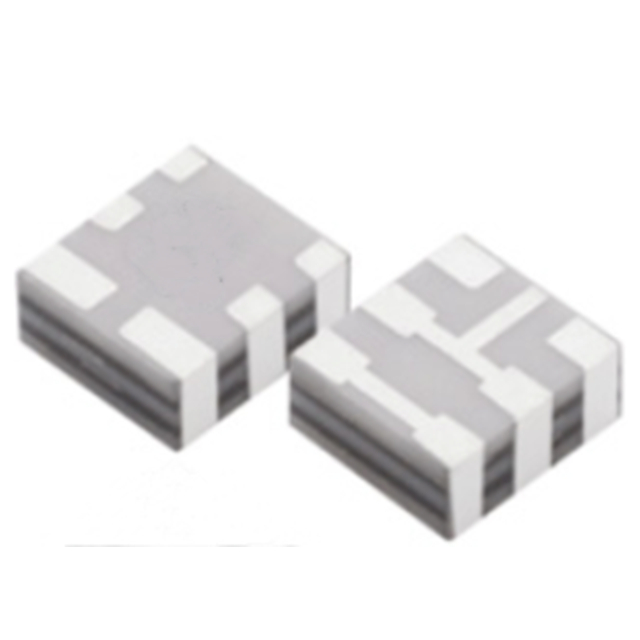

The FF10M70000S0A5 is a surface-mount MHz ceramic filter from the CF33 series, manufactured by NextGen Components. It features a center frequency of 10.700MHz with a 3dB bandwidth of 280+/-50KHz. The component has an AC resistance of 330 Ohms and operates in a 1412 (3531 Metric) package measuring L3.45*W3.1*H1.4mm with 4 pads.

Feature Summary

• Surface-mount construction for automated assembly
• Fixed center frequency tuning at 10.700MHz
• Defined 3dB bandwidth for signal selectivity

Applications

• FM intermediate frequency filtering
• Radio receiver signal processing
• Communication equipment front-ends

Procurement Notes

Verify exact specifications against the official product datasheet before integration. Confirm package dimensions and pin configuration match design requirements. Ensure environmental ratings meet operational standards. Cross-reference part codes to avoid substitution errors during procurement.

Selection Notes

Select this component for applications requiring precise 10.7MHz filtering with specific bandwidth constraints. Evaluate insertion loss and impedance matching against circuit requirements. Consider physical size limitations within the target PCB layout when choosing between SMD and through-hole alternatives.

Part Context

This ceramic filter belongs to NextGen Components' CF33 series, designed for MHz range applications. The manufacturer specializes in electronic components including quartz crystals, SAW filters, and discriminators. This specific model utilizes ceramic technology for stable frequency response in consumer and industrial electronics.

Replacement Considerations

Consult official substitution lists for compatible parts. Verify electrical parameters such as center frequency and bandwidth match exactly. Check package compatibility for direct replacement without PCB redesign.
