FF28B1729

Overview

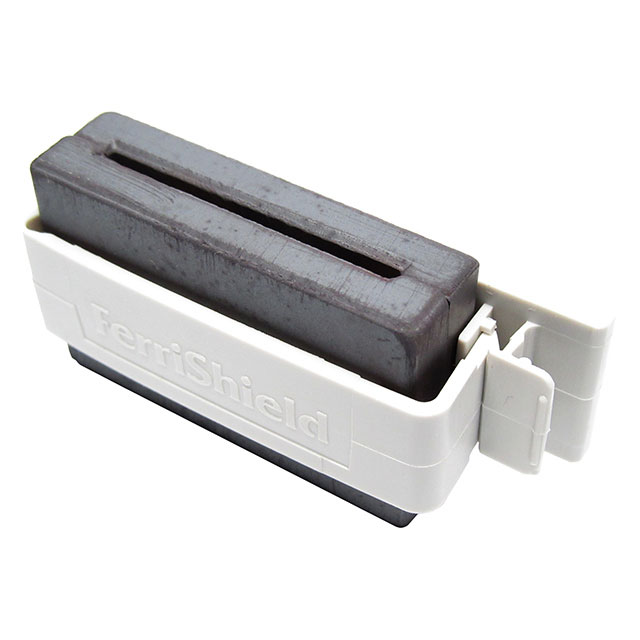

The FF28B1729 is a flat ribbon cable ferrite clamp-on core manufactured by Leader Tech Inc. It utilizes material grade 28 for electromagnetic interference suppression. The component measures 28.58 mm in length and provides an impedance of 200 Ohms at a test frequency of 100 MHz. Internal dimensions are specified as 4.65 mm width by 1.52 mm height, accommodating flat cables. The design features a chassis mount configuration suitable for secure installation on electronic enclosures.

Feature Summary

• Clamp-on design for flat ribbon cables
• Material grade 28 composition
• Chassis mount configuration

Applications

• Electromagnetic interference suppression in embedded electronics
• Cable assembly integration
• Flat cable noise reduction

Procurement Notes

Verify the exact internal dimensions against specific cable thickness requirements before procurement. Confirm that the chassis mount style aligns with the intended enclosure design. Ensure compatibility with the target frequency range for effective noise suppression. Cross-reference the material grade to meet specific environmental or performance standards required by the application.

Selection Notes

Select this component when flat ribbon cable suppression is required within constrained spaces. The chassis mount style offers stability compared to snap-fit alternatives. Consider the 200 Ohm impedance rating relative to the noise frequencies present in the system. Verify that the internal aperture accommodates the specific flat cable geometry without excessive clearance.

Part Context

This part belongs to the Leader Tech ferrite cable core family, specifically designed for flat cable applications. It shares the material grade characteristics with other components in the series but differs in physical dimensions and mounting style. The product line focuses on providing reliable EMI suppression solutions for various cable types and installation environments.

Replacement Considerations

FF28B1240

FAQ

What is the impedance value of the FF28B1729?

The impedance is 200 Ohms at a frequency of 100 MHz.

What type of cable does this core support?

It is designed for flat ribbon cables.
