Product Detailed Parameters
- Description：IGBT MODULE 1200V 4050W
- Series：EconoDUAL™ 3
- Mfr：Infineon Technologies
- Package：Tray
- IGBT Type：Trench Field Stop
- Configuration：2 Independent
- Vce(on) (Max) @ Vge, Ic：2.1V @ 15V, 600A
- Input：Standard
- NTC Thermistor：Yes
- Operating Temperature：-40°C ~ 150°C
- Mounting Type：Chassis Mount
- Package / Case：Module
- Supplier Device Package：Module
- Voltage - Collector Emitter Breakdown (Max)：1200 V
- Current - Collector (Ic) (Max)：-
- Power - Max：4050 W
- Current - Collector Cutoff (Max)：3 mA
- Input Capacitance (Cies) @ Vce：37 nF @ 25 V
Download product information
Overview

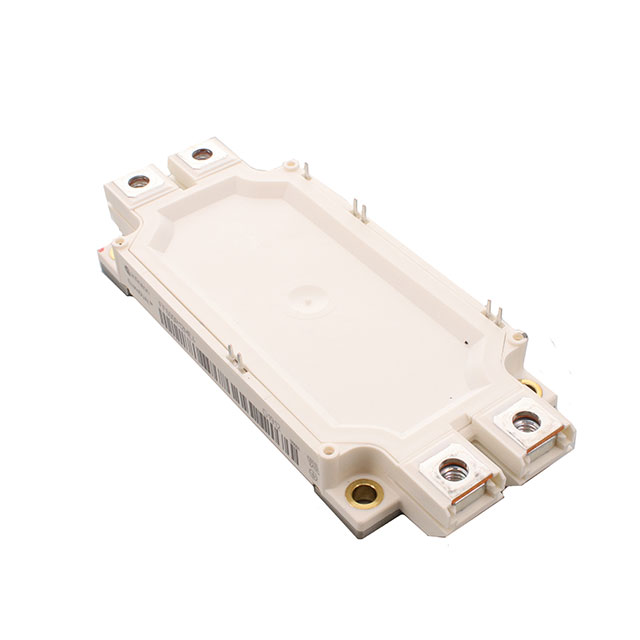

The FF600R12ME4BOSA1 is a half-bridge IGBT module from Infineon Technologies, utilizing Trench/Fieldstop IGBT4 technology. It features a collector-emitter voltage of 1200 V and a nominal continuous DC collector current of 600 A at a case temperature of 100 °C. The module incorporates an integrated NTC thermistor with a rated resistance of 5 kΩ at 25 °C. Electrical characteristics include a typical collector-emitter saturation voltage of 1.75 V and a forward voltage of 1.65 V for the emitter-controlled diode at 25 °C. The unit weighs 345 g and operates within a junction temperature range of -40 °C to 150 °C.
Feature Summary
- Integrates Trench/Fieldstop IGBT4 and emitter-controlled diode technology for optimized switching performance.
- Includes an embedded NTC thermistor for precise thermal monitoring and protection.
- Features an isolated copper base plate designed for high power density applications.
- Complies with industrial qualification standards including IEC 60747, 60749, and 60068.
Applications
- High-power converters
- Motor drives
- Servo drives
- UPS systems
- Wind turbines
Procurement Notes
Verify the specific BOSA1 suffix against official documentation to confirm terminal configuration and packaging details. Confirm that the component meets all relevant safety and insulation requirements for the intended industrial application environment before integration.
Selection Notes
Select this module for applications requiring robust 1200 V switching capabilities with integrated thermal sensing. Ensure the cooling system can maintain the case temperature at or below 100 °C to support the full 600 A continuous current rating effectively.
Part Context
This component belongs to the EconoDUAL™3 series, which utilizes standard housing dimensions for simplified mechanical integration. The module is manufactured using silicon technology and is specifically engineered for industrial-grade reliability and high power density in demanding environments.
Replacement Considerations
Consult official replacement lists for updated generations such as the IGBT7 series. Verify pin compatibility and thermal resistance specifications when considering alternative part numbers from the same manufacturer family.
FAQ
What is the maximum operating junction temperature?
The maximum operating junction temperature (Tvj op) is 150 °C.
Does the module include thermal monitoring?
Yes, it includes an integrated NTC thermistor with a rated resistance of 5 kΩ at 25 °C.
What is the isolation test voltage?
The isolation test voltage between terminals and the baseplate is 2.5 kV RMS for 1 minute.
