FFAT-1410

Overview

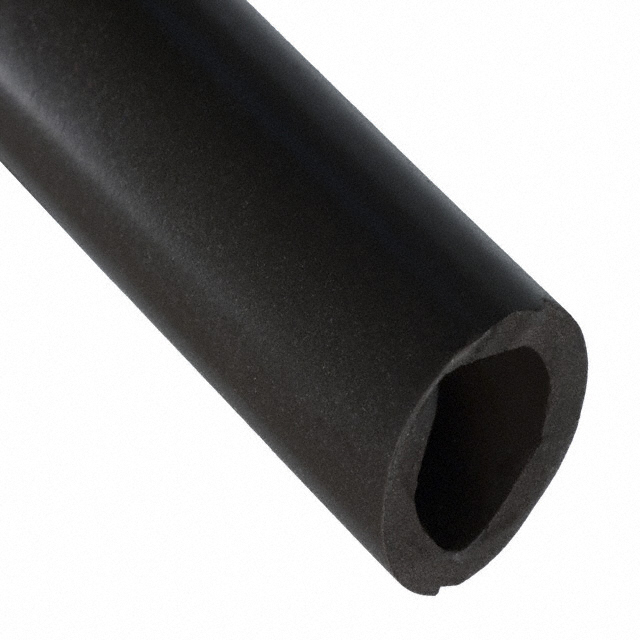

The Delevan FFAT-1410 is a flexible ferrite absorbent tubing designed for cable-mounted electromagnetic interference suppression. It features a tubular design with an inner diameter of 0.394 inches (10.00 mm) and an outer diameter of 0.551 inches (14.00 mm). The component provides an impedance of 149 Ohms at 100 MHz. Each unit has a length of 3.281 feet (1.00 meter). It is classified under EMI gaskets, sheets, and absorbers.

Feature Summary

• Flexible ferrite construction allows for easy installation on various cable types
• Tubular free-hanging design facilitates direct cable mounting without additional hardware
• Provides specific impedance characteristics for high-frequency noise attenuation

Applications

• Cable-mounted electromagnetic interference suppression
• High-frequency noise attenuation in electronic assemblies
• EMI shielding for flexible cable runs

Procurement Notes

Verify the exact physical dimensions and impedance specifications against the official Delevan datasheet before integration. Confirm that the tubular form factor and flexible material properties meet the mechanical requirements of the target cable assembly. Ensure compatibility with the intended frequency range for effective noise reduction.

Selection Notes

Select this component when flexible, cable-mounted EMI absorption is required rather than rigid snap-on cores. The specific inner diameter must accommodate the target cable bundle size. Consider the 149 Ohm impedance profile at 100 MHz to ensure it aligns with the noise frequencies present in the application environment.

Part Context

This part belongs to the Delevan FFAT series of flexible ferrite absorbent tubing. These components are engineered for applications requiring adaptable EMI suppression solutions where rigid cores are impractical. The series offers various dimensional options to fit different cable sizes while maintaining consistent magnetic performance characteristics.

Replacement Considerations

No public confirmed substitute part numbers are available in the provided documentation.
