FFAT-32

Overview

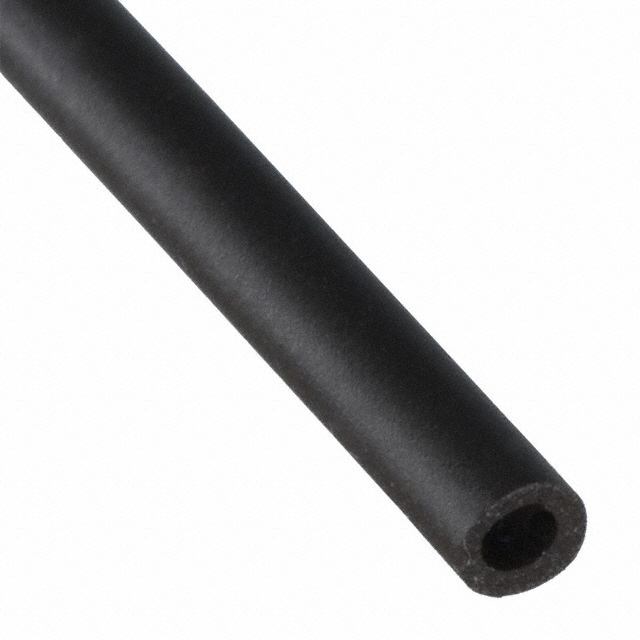

The Delevan FFAT-32 is a flexible ferrite absorbent tubing designed for EMI/RFI suppression. It features a tubular shape with an inner diameter of 1.80 mm and an outer diameter of 2.90 mm. The component provides an impedance of 140 ohms at 100 MHz. The standard length is 1.00 meter (3.281 feet). It is classified as a cable single type ferrite core suitable for flexible applications.

Feature Summary

• Flexible construction allows easy installation around existing cables without disconnection
• Provides effective electromagnetic interference and radio frequency interference suppression
• Tubular design accommodates various cable diameters within specified limits

Applications

• EMI suppression on data and power cables
• RFI noise reduction in electronic assemblies
• Cable shielding in compact spaces requiring flexibility

Procurement Notes

Verify the specific impedance value and physical dimensions against the official manufacturer datasheet before integration. Confirm that the supplier documentation explicitly identifies the product as the FFAT-32 flexible ferrite tubing from Delevan or API Delevan to ensure material compatibility and performance specifications match the design requirements.

Selection Notes

Select this component when flexible ferrite coverage is required for cable management. The 1.80 mm inner diameter dictates the maximum cable size it can enclose. The 140 ohm impedance at 100 MHz determines its effectiveness against specific noise frequencies. Ensure the application environment supports the material properties of the flexible ferrite absorbent tubing.

Part Context

This part belongs to the Delevan FFAT series, which specializes in flexible ferrite absorbent materials. Unlike rigid clamp-on cores, this series offers continuous tubing solutions. It serves as a passive component for noise control in electronics, distinct from discrete inductors or fixed magnetic cores.

Replacement Considerations

No public confirmed substitute part numbers are available in the provided documentation. Verify compatibility with alternative flexible ferrite tubes based on matching inner diameter, outer diameter, and impedance characteristics at the target frequency.
