Product Detailed Parameters
- Description：FERRITE CORE 134 OHM TUBULAR 6MM
- Series：FFAT
- Mfr：Delevan
- Package：Bulk
- Type：Round
- Design：Tubular
- Impedance @ Frequency：134Ohm @ 100MHz
- Material：-
- Inner Dimension：0.236" Dia (6.00mm)
- Outer Dimension：0.354" Dia (9.00mm)
- Ratings：-
- Mounting Type：Free Hanging
- Length：3.281' (1.00m)
Download product information
Overview

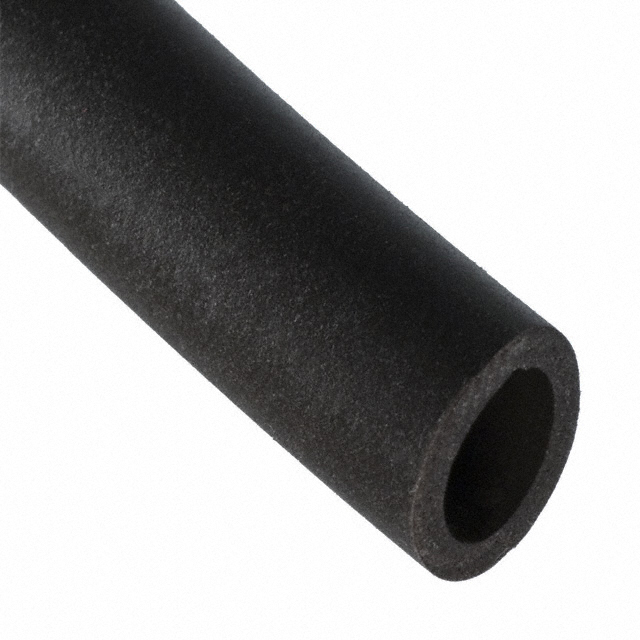

The Delevan FFAT96 is a tubular flexible ferrite absorbent core designed for EMI suppression. It features an inner diameter of 6.00 mm (0.236 inches). The component exhibits an impedance of 134 Ohms at 100 MHz. This passive magnetic component is engineered to attenuate high-frequency noise on cables and conductors.
Feature Summary
- Provides effective electromagnetic interference suppression across a wide frequency range
- Flexible tubular design allows easy installation around existing cables
- High impedance characteristics target specific noise frequencies
Applications
- Cable noise suppression in electronic assemblies
- EMI filtering for signal and power lines
- RFI mitigation in sensitive measurement equipment
Procurement Notes
Verify the exact impedance specification and physical dimensions against the official API Delevan datasheet before integration. Confirm RoHS compliance status as historical data may vary. Ensure the supplier provides genuine components from authorized channels to guarantee material consistency and performance reliability.
Selection Notes
Select this component when a flexible, snap-on ferrite solution is required for cable management. The 6 mm inner diameter dictates the maximum cable size it can accommodate. Evaluate the 134 Ohm impedance at 100 MHz against the specific noise spectrum of the application to ensure adequate attenuation without affecting desired signal integrity.
Part Context
This part belongs to the Delevan FFAT series of flexible ferrite absorbent materials. These components are distinct from rigid inductors or shielded beads, offering a versatile solution for post-assembly EMI control. The series focuses on providing effective suppression in compact spaces where traditional shielding is impractical.
Replacement Considerations
Consult official API Delevan documentation for direct cross-references. Generic ferrite cores with identical dimensions and impedance ratings may serve as functional substitutes if verified against the original specifications.
