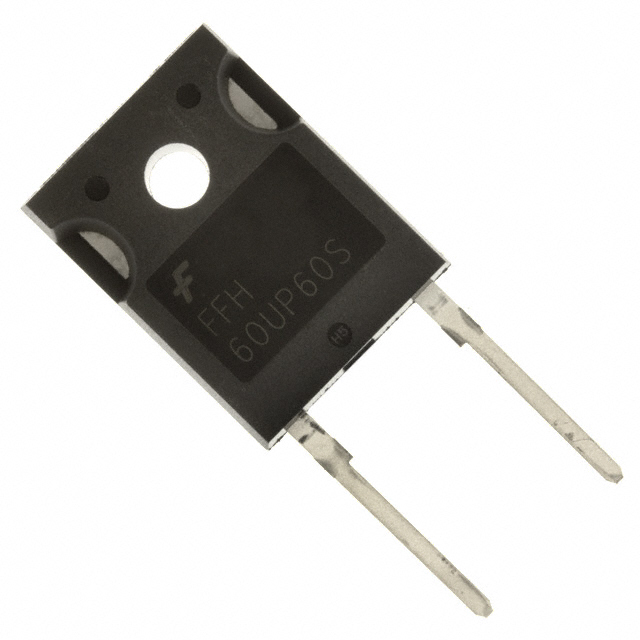

FFH60UP60S

Description：DIODE STANDARD 600V 60A TO2472
Series：-
Mfr：onsemi
Package：Tube

SKU:e1ed495f3df7 Category: Single Diodes Brand: onsemi

Consult the customer manager about the wholesale price.

consultation hotline：86-132-6715-2157

email：[email protected]
Contact the product manager for consultation. One-stop consultation is available.

Do you want a lower wholesale price? Please send us your inquiry and we will reply immediately.

Product introduction

FFH60UP60S is listed in the Single Diodes range at ChipApex. The manufacturer field lists onsemi. Its product description is DIODE STANDARD 600V 60A TO2472. Review the specifications below when checking this part for your BOM.

Single Diodes specifications for FFH60UP60S

Description：DIODE STANDARD 600V 60A TO2472
Series：-
Mfr：onsemi
Package：Tube
Technology：Standard
Voltage - DC Reverse (Vr) (Max)：600 V
Current - Average Rectified (Io)：60A
Voltage - Forward (Vf) (Max) @ If：1.7 V @ 60 A
Speed：Fast Recovery =< 500ns, > 200mA (Io)
Reverse Recovery Time (trr)：80 ns
Current - Reverse Leakage @ Vr：100 µA @ 600 V
Capacitance @ Vr, F：-
Mounting Type：Through Hole
Package / Case：TO-247-2
Supplier Device Package：TO-247-2
Operating Temperature - Junction：-65°C ~ 150°C
Grade：-
Qualification：-

Single Diodes datasheet and documents for FFH60UP60S

FFH60UP60S

Single Diodes Overview

The FFH60UP60S is a single ultrafast recovery rectifier manufactured by onsemi, designed for high-speed switching applications. It features a 600V reverse voltage rating and supports a continuous forward current of 60A. The device utilizes a TO-247-3 through-hole package with tin-plated contacts. Key electrical characteristics include a maximum forward voltage of 1.7V at rated current and a reverse recovery time of 80ns. It operates within a junction temperature range of -55°C to +175°C and dissipates power up to 600W.

Single Diodes Feature Summary

Ultrafast recovery performance with an 80ns reverse recovery time
High thermal stability supporting operation up to 175°C junction temperature
Robust surge current handling capability of 600A

Single Diodes Applications

General purpose rectification in power supplies
Switching mode power supply (SMPS) circuits
Free-wheeling diode configurations for motor drives
Power switching circuits requiring fast recovery

Single Diodes Procurement Notes

Verify the exact suffix against official datasheets to confirm pinout and packaging variations. Confirm RoHS compliance status and REACH SVHC declarations prior to integration. Ensure thermal management design accounts for the specified 600W power dissipation limit at case temperature conditions.

Single Diodes Selection Notes

Select this component for designs requiring high efficiency and low reverse recovery charge in medium-power applications. Compare the 80ns recovery time against slower alternatives if switching frequency exceeds standard ranges. Validate that the 60A continuous current rating aligns with peak load requirements and ambient thermal conditions.

Single Diodes Part Context

This part belongs to onsemi's ultrafast rectifier family, characterized by optimized trade-offs between forward voltage drop and reverse recovery speed. It serves as a discrete solution for replacing older silicon carbide or faster silicon diodes in cost-sensitive high-frequency topologies where soft recovery is not strictly mandated.
