FFSH1665A

Single Diodes Overview

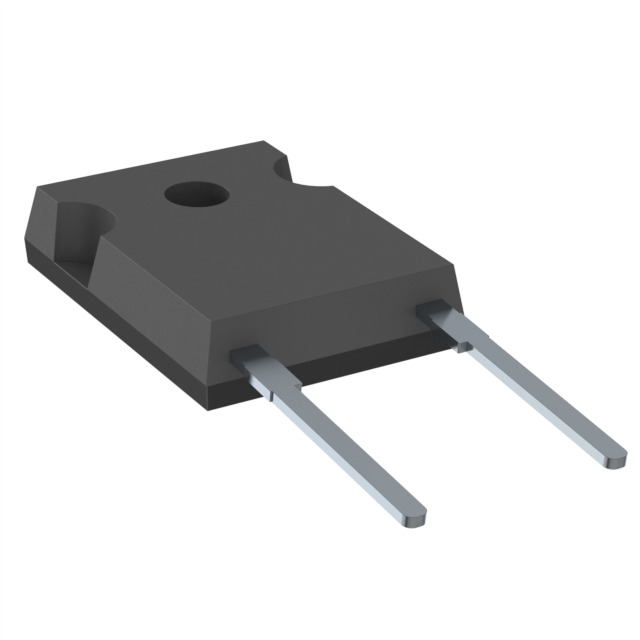

The FFSH1665A is a Silicon Carbide (SiC) Schottky diode manufactured by onsemi. It features a 650 V reverse voltage rating and an average forward current of 23 A. The component utilizes a TO-247-2L package with two pins and a tab for mounting. This device belongs to the EliteSiC family, designed for superior switching performance compared to traditional silicon technologies.

Single Diodes Feature Summary

• Utilizes Silicon Carbide technology for enhanced thermal stability and efficiency
• Schottky barrier construction minimizes reverse recovery charge
• High-temperature operation capability suitable for demanding environments

Single Diodes Applications

• Industrial motor drives
• Uninterruptible power supplies
• Solar inverters

Single Diodes Procurement Notes

Verify the specific datasheet revision when sourcing to ensure compliance with latest electrical characteristics. Confirm that the TO-247-2L package dimensions match the target PCB footprint. Check for any RoHS or REACH compliance declarations required by the destination market regulations before finalizing procurement orders.

Single Diodes Selection Notes

Select this component for applications requiring high-frequency switching and reduced conduction losses. The SiC material offers better thermal conductivity than silicon alternatives. Ensure the system design accounts for the specific thermal resistance values provided in the official documentation to maintain safe operating temperatures under load conditions.

Single Diodes Part Context

This diode is part of onsemi's EliteSiC portfolio, which focuses on high-performance power solutions. The product line targets modern power electronics that demand higher efficiency and compact form factors. It represents a shift towards wide-bandgap semiconductors in industrial and commercial power conversion systems.

Single Diodes Replacement Considerations

Consult official substitution guides for compatible parts within the same voltage and current ratings. Verify pinout compatibility and thermal management requirements when considering alternative manufacturers. Cross-reference specifications to ensure equivalent switching speeds and breakdown voltages.
