Product Detailed Parameters
- Description：FILTER S3, 2 PIN 10.7MHZ
- Series：FG
- Mfr：TGS
- Package：Bulk
- Frequency：10.7MHz Center
- Impedance：-
- Bandwidth：180 kHz
- Insertion Loss：7dB
- Filter Type：Band Pass
- Mounting Type：Through Hole
- Package / Case：-
- Size / Dimension：-
- Height (Max)：-
Download product information
Overview

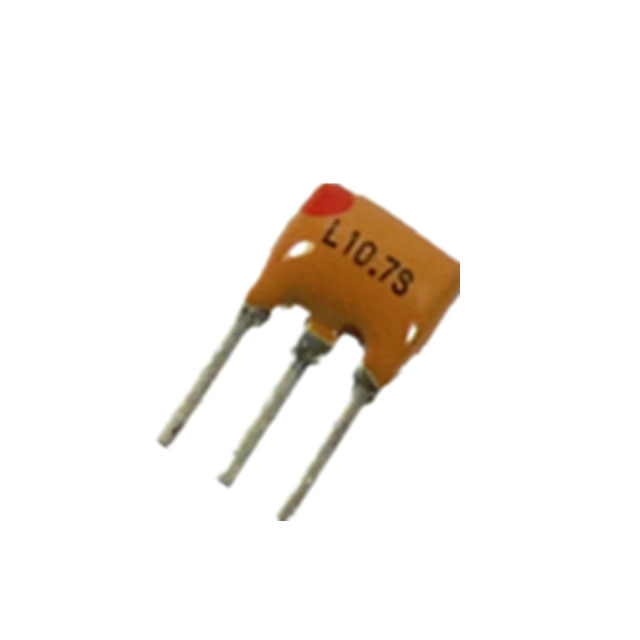

The TGS FG10M70000L100 is a ceramic band-pass filter with a center frequency of 10.7 MHz and a bandwidth of 180 kHz. It is designed for surface-mount applications, providing signal selection in intermediate frequency (IF) stages. The component utilizes ceramic resonator technology to achieve stable filtering characteristics within compact electronic assemblies.
Feature Summary
- Provides precise band-pass filtering at the 10.7 MHz intermediate frequency
- Utilizes robust ceramic resonator construction for stability
- Designed for surface-mount integration into printed circuit boards
Applications
- Intermediate frequency filtering in AM/FM radio receivers
- Signal processing in communication equipment
- Audio demodulation circuits in consumer electronics
Procurement Notes
Verify the manufacturer designation carefully, as TGS components are often distributed by third-party suppliers such as BLH or LT10. Confirm that the specific ordering suffix matches the required 10.7 MHz center frequency and 180 kHz bandwidth specifications before finalizing procurement orders.
Selection Notes
Select this component when a fixed 10.7 MHz ceramic filter is required for IF stages. Ensure the PCB layout supports the specific surface-mount package dimensions. Verify that the load capacitance requirements of the surrounding circuitry align with the filter's specified electrical parameters for optimal performance.
Part Context
This part belongs to the family of ceramic band-pass filters manufactured by TGS Crystals/CF. These components are widely used in analog signal processing applications where cost-effective and reliable frequency selection is necessary for intermediate frequency stages in broadcast and communication devices.
Replacement Considerations
Check datasheets for equivalent ceramic filters from other manufacturers offering identical 10.7 MHz center frequencies and comparable bandwidths. Ensure pin compatibility and package dimensions match to facilitate direct replacement without redesigning the printed circuit board layout.
