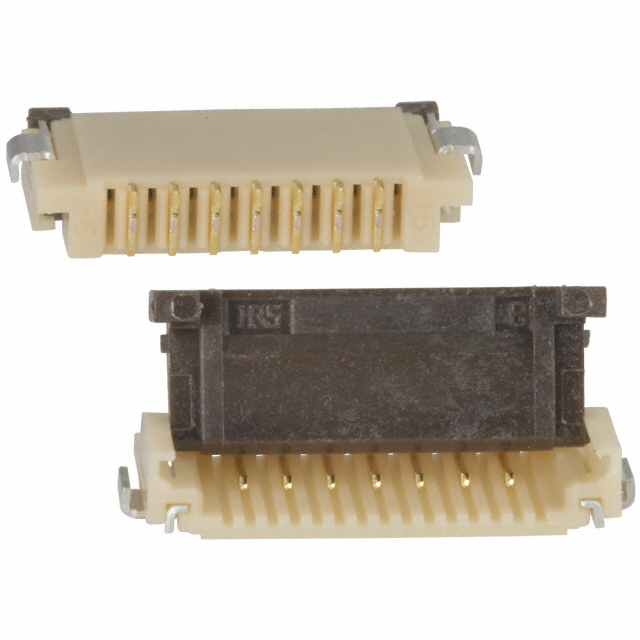

FFC, FPC (Flat Flexible) Connector Assemblies FH12-7S-1SH(1)(98) product image

FH12-7S-1SH(1)(98)

$1.02

Description：CONN FFC FPC BOTTOM 7POS 1MM R/A
Series：FH12
Mfr：Hirose Electric Co Ltd
Package：Tape & Reel (TR)

SKU:cef0b235ba80 Category: FFC, FPC (Flat Flexible) Connector Assemblies Brand: Hirose Electric Co Ltd

ChipApex WhatsApp

Consult the customer manager about the wholesale price.

consultation hotline：86-132-6715-2157

email：[email protected]
Contact the product manager for consultation. One-stop consultation is available.

Do you want a lower wholesale price? Please send us your inquiry and we will reply immediately.

Product introduction

FH12-7S-1SH(1)(98) is listed in the FFC, FPC (Flat Flexible) Connector Assemblies range at ChipApex. The manufacturer field lists Hirose Electric Co Ltd. Its product description is CONN FFC FPC BOTTOM 7POS 1MM R/A. Review the specifications below when checking this part for your BOM.

FFC, FPC (Flat Flexible) Connector Assemblies specifications for FH12-7S-1SH(1)(98)

Description：CONN FFC FPC BOTTOM 7POS 1MM R/A
Series：FH12
Mfr：Hirose Electric Co Ltd
Package：Tape & Reel (TR)
Flat Flex Type：FFC, FPC
Mounting Type：Surface Mount, Right Angle
Connector/Contact Type：Contacts, Bottom
Number of Positions：7
Pitch：0.039" (1.00mm)
Termination：Solder
FFC, FCB Thickness：0.30mm
Height Above Board：0.079" (2.00mm)
Locking Feature：Flip Lock
Cable End Type：Straight
Contact Material：Phosphor Bronze
Contact Finish：Gold
Housing Material：Polyamide (PA), Nylon
Actuator Material：Polyphenylene Sulfide (PPS)
Features：Solder Retention, Zero Insertion Force (ZIF)
Voltage Rating：50V
Operating Temperature：-40°C ~ 85°C
Material Flammability Rating：UL94 V-0

FFC, FPC (Flat Flexible) Connector Assemblies datasheet and documents for FH12-7S-1SH(1)(98)

FH12-7S-1SH(1)(98)
