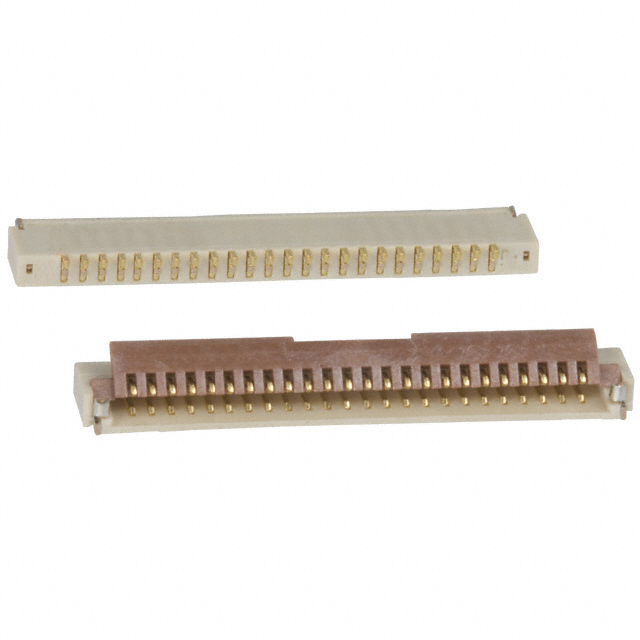

FFC, FPC (Flat Flexible) Connector Assemblies FH19C-24S-0.5SH(05) product image

FH19C-24S-0.5SH(05)

$1.73

Description：CONN FFC BOTTOM 24POS 0.5MM R/A
Series：FH19C
Mfr：Hirose Electric Co Ltd
Package：Tape & Reel (TR),Cut Tape (CT)

SKU:d21f1650cab0 Category: FFC, FPC (Flat Flexible) Connector Assemblies Brand: Hirose Electric Co Ltd

ChipApex WhatsApp

Consult the customer manager about the wholesale price.

consultation hotline：86-132-6715-2157

email：[email protected]
Contact the product manager for consultation. One-stop consultation is available.

Do you want a lower wholesale price? Please send us your inquiry and we will reply immediately.

Product introduction

FH19C-24S-0.5SH(05) is listed in the FFC, FPC (Flat Flexible) Connector Assemblies range at ChipApex. The manufacturer field lists Hirose Electric Co Ltd. Its product description is CONN FFC BOTTOM 24POS 0.5MM R/A. Review the specifications below when checking this part for your BOM.

FFC, FPC (Flat Flexible) Connector Assemblies specifications for FH19C-24S-0.5SH(05)

Description：CONN FFC BOTTOM 24POS 0.5MM R/A
Series：FH19C
Mfr：Hirose Electric Co Ltd
Package：Tape & Reel (TR),Cut Tape (CT)
Flat Flex Type：FFC, FPC
Mounting Type：Surface Mount, Right Angle
Connector/Contact Type：Contacts, Bottom
Number of Positions：24
Pitch：0.020" (0.50mm)
Termination：Solder
FFC, FCB Thickness：0.20mm
Height Above Board：0.035" (0.88mm)
Locking Feature：Flip Lock
Cable End Type：Tapered
Contact Material：Phosphor Bronze
Contact Finish：Gold
Housing Material：Liquid Crystal Polymer (LCP), Halogen Free
Actuator Material：Liquid Crystal Polymer (LCP), Polyphenylene Sulfide (PPS)
Features：Solder Retention, Zero Insertion Force (ZIF)
Voltage Rating：50V
Operating Temperature：-55°C ~ 85°C
Material Flammability Rating：UL94 V-0

FFC, FPC (Flat Flexible) Connector Assemblies datasheet and documents for FH19C-24S-0.5SH(05)

FH19C-24S-0.5SH(05)
