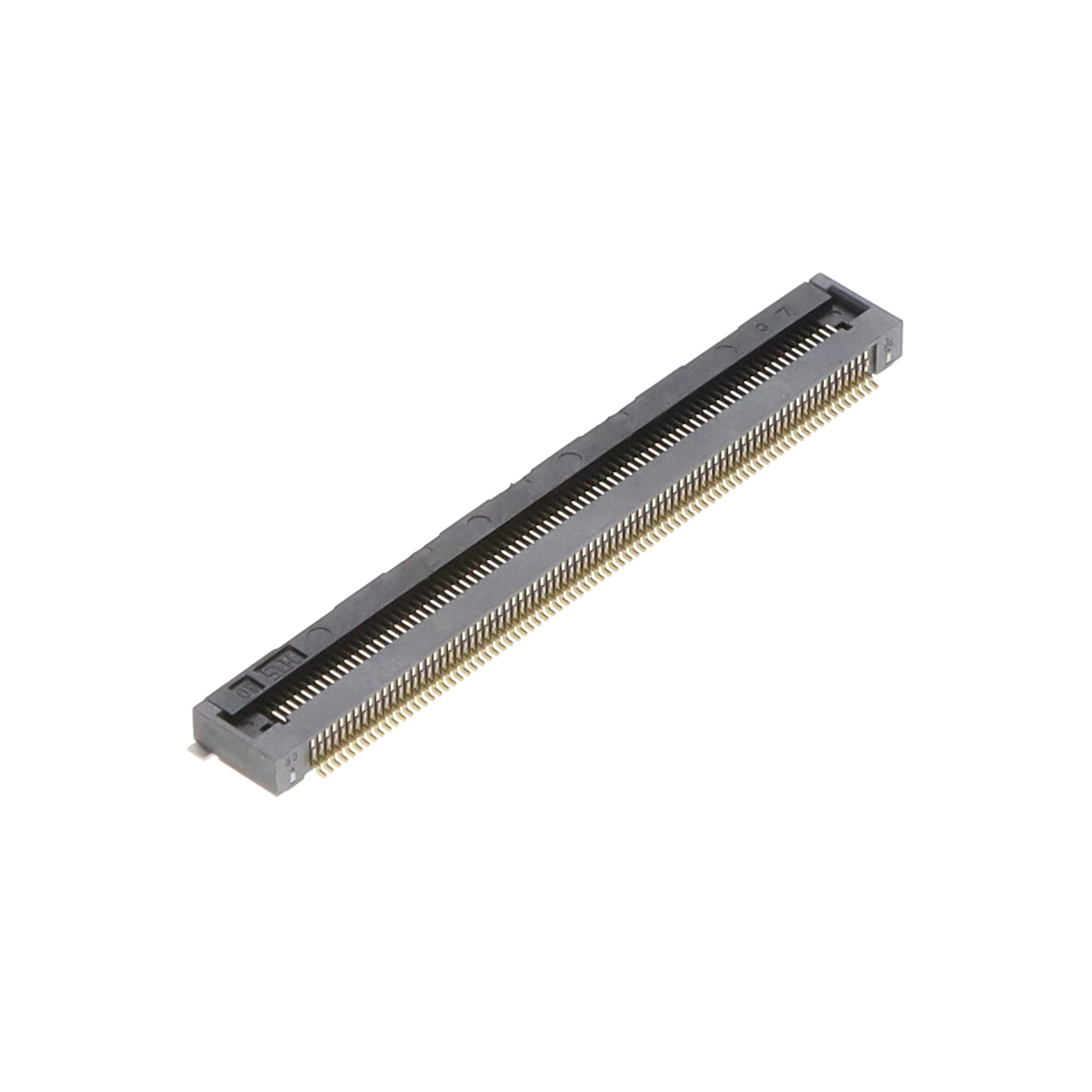

FFC, FPC (Flat Flexible) Connector Assemblies FH28KH-80S-0.5SH(98) product image

FH28KH-80S-0.5SH(98)

$2.66

Description：RECEPTACLE, 0.5MM PITCH, 45.7MM
Series：FH28K
Mfr：Hirose Electric Co Ltd
Package：Tape & Reel (TR),Cut Tape (CT)

SKU:e27f6eb9fbb4 Category: FFC, FPC (Flat Flexible) Connector Assemblies Brand: Hirose Electric Co Ltd

ChipApex WhatsApp

Consult the customer manager about the wholesale price.

consultation hotline：86-132-6715-2157

email：[email protected]
Contact the product manager for consultation. One-stop consultation is available.

Do you want a lower wholesale price? Please send us your inquiry and we will reply immediately.

Product introduction

FH28KH-80S-0.5SH(98) is listed in the FFC, FPC (Flat Flexible) Connector Assemblies range at ChipApex. The manufacturer field lists Hirose Electric Co Ltd. Its product description is RECEPTACLE, 0.5MM PITCH, 45.7MM. Review the specifications below when checking this part for your BOM.

FFC, FPC (Flat Flexible) Connector Assemblies specifications for FH28KH-80S-0.5SH(98)

Description：RECEPTACLE, 0.5MM PITCH, 45.7MM
Series：FH28K
Mfr：Hirose Electric Co Ltd
Package：Tape & Reel (TR),Cut Tape (CT)
Flat Flex Type：FFC, FPC
Mounting Type：Surface Mount, Right Angle
Connector/Contact Type：Contacts, Bottom
Number of Positions：80
Pitch：0.020" (0.50mm)
Termination：Solder
FFC, FCB Thickness：0.30mm
Height Above Board：0.100" (2.54mm)
Locking Feature：Rotary Lock
Cable End Type：Tabbed, Tapered
Contact Material：Phosphor Bronze
Contact Finish：Gold
Housing Material：Liquid Crystal Polymer (LCP)
Actuator Material：Liquid Crystal Polymer (LCP)
Features：Solder Retention, Zero Insertion Force (ZIF)
Voltage Rating：50V
Operating Temperature：-40°C ~ 125°C
Material Flammability Rating：UL94 V-0
