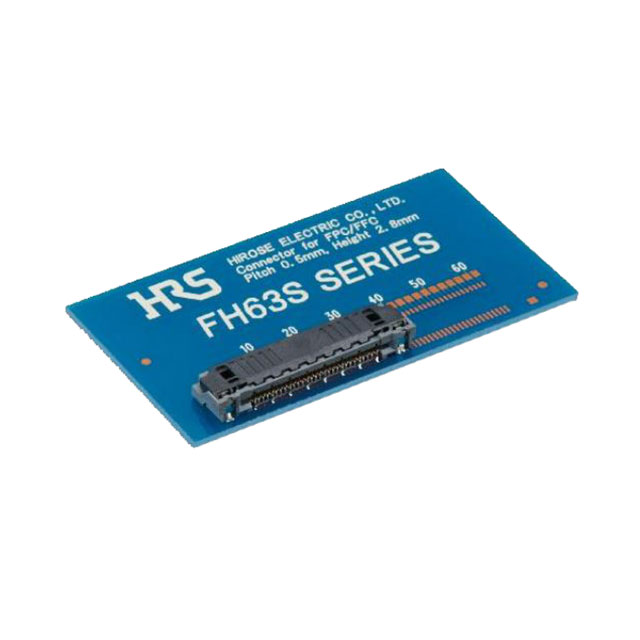

FFC, FPC (Flat Flexible) Connector Assemblies FH63S-10S-0.5SH product image

FH63S-10S-0.5SH

$1.60

Description：CONN FFC BOTTOM 10POS 0.5MM R/A
Series：FH63S
Mfr：Hirose Electric Co Ltd
Package：Tape & Reel (TR),Cut Tape (CT)

SKU:b691f931d512 Category: FFC, FPC (Flat Flexible) Connector Assemblies Brand: Hirose Electric Co Ltd

ChipApex WhatsApp

Consult the customer manager about the wholesale price.

consultation hotline：86-132-6715-2157

email：[email protected]
Contact the product manager for consultation. One-stop consultation is available.

Do you want a lower wholesale price? Please send us your inquiry and we will reply immediately.

Product introduction

FH63S-10S-0.5SH is listed in the FFC, FPC (Flat Flexible) Connector Assemblies range at ChipApex. The manufacturer field lists Hirose Electric Co Ltd. Its product description is CONN FFC BOTTOM 10POS 0.5MM R/A. Review the specifications below when checking this part for your BOM.

FFC, FPC (Flat Flexible) Connector Assemblies specifications for FH63S-10S-0.5SH

Description：CONN FFC BOTTOM 10POS 0.5MM R/A
Series：FH63S
Mfr：Hirose Electric Co Ltd
Package：Tape & Reel (TR),Cut Tape (CT)
Flat Flex Type：FFC, FPC
Mounting Type：Surface Mount, Right Angle
Connector/Contact Type：Contacts, Bottom
Number of Positions：10
Pitch：0.020" (0.50mm)
Termination：Solder
FFC, FCB Thickness：0.30mm
Height Above Board：0.110" (2.80mm)
Locking Feature：Flip Lock, Backlock
Cable End Type：Notched
Contact Material：Copper Alloy
Contact Finish：Gold
Housing Material：Liquid Crystal Polymer (LCP), Halogen Free
Actuator Material：Liquid Crystal Polymer (LCP), Halogen Free
Features：Solder Retention
Voltage Rating：50V
Operating Temperature：-55°C ~ 125°C
Material Flammability Rating：UL94 V-0

FFC, FPC (Flat Flexible) Connector Assemblies datasheet and documents for FH63S-10S-0.5SH

FH63S-10S-0.5SH
