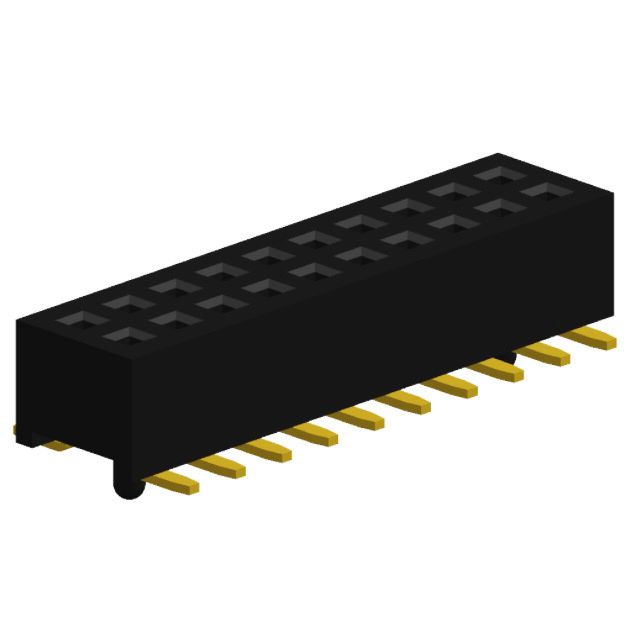

FHBD-SS020G1NBWL-FA4

FHBD-SS020G1NBWL-FA4 is listed in the Headers, Receptacles, Female Sockets range at ChipApex. The manufacturer field lists SUPERIOR TECH. Its product description is FEMALE HEADER VERTICAL 20POS SMD. Review the specifications below when checking this part for your BOM.

Headers, Receptacles, Female Sockets specifications for FHBD-SS020G1NBWL-FA4

• Description：FEMALE HEADER VERTICAL 20POS SMD
• Series：-
• Mfr：SUPERIOR TECH
• Package：Tape & Reel (TR),Cut Tape (CT)
• Connector Type：Receptacle
• Contact Type：Female Socket
• Style：Board to Board
• Number of Positions：20
• Number of Positions Loaded：All
• Pitch - Mating：0.039" (1.00mm)
• Number of Rows：2
• Row Spacing - Mating：0.039" (1.00mm)
• Mounting Type：Surface Mount
• Termination：Solder
• Fastening Type：Push-Pull
• Contact Finish - Mating：Gold
• Contact Finish Thickness - Mating：Flash
• Insulation Color：Black
• Insulation Height：0.079" (2.00mm)
• Contact Length - Post：0.055" (1.40mm)
• Operating Temperature：-40°C ~ 125°C
• Material Flammability Rating：UL94 V-0
• Contact Finish - Post：Gold
• Mated Stacking Heights：-
• Ingress Protection：-
• Features：-
• Current Rating (Amps)：0.75A
• Voltage Rating：-
