FHSAA01A1FR

$8.61

Description：LINE FILTER 250VAC 1A CHASS MNT
Series：-
Mfr：XP Power
Package：Tray

SKU:2dc87724785a Category: Power Line Filter Modules Brand: XP Power

Consult the customer manager about the wholesale price.

consultation hotline：86-132-6715-2157

email：[email protected]
Contact the product manager for consultation. One-stop consultation is available.

Do you want a lower wholesale price? Please send us your inquiry and we will reply immediately.

Product introduction

FHSAA01A1FR is listed in the Power Line Filter Modules range at ChipApex. The manufacturer field lists XP Power. Its product description is LINE FILTER 250VAC 1A CHASS MNT. Review the specifications below when checking this part for your BOM.

Power Line Filter Modules specifications for FHSAA01A1FR

Description：LINE FILTER 250VAC 1A CHASS MNT
Series：-
Mfr：XP Power
Package：Tray
Filter Type：Single Phase
Configuration：Single Stage
Voltage - Rated DC：-
Voltage - Rated AC：250V
Current：1:00 AM
Frequency - Operating：DC ~ 400Hz
Applications：ITE
Approval Agency：EN, UL
Operating Temperature：-40°C ~ 110°C
Mounting Type：Chassis Mount
Termination Style：Quick Connect
Inductance：10mH
Voltage - Rated AC (Phase to Ground/Neutral)：-
Voltage - Rated AC (Phase to Phase)：-

Power Line Filter Modules datasheet and documents for FHSAA01A1FR

FHSAA01A1FR

Power Line Filter Modules Overview

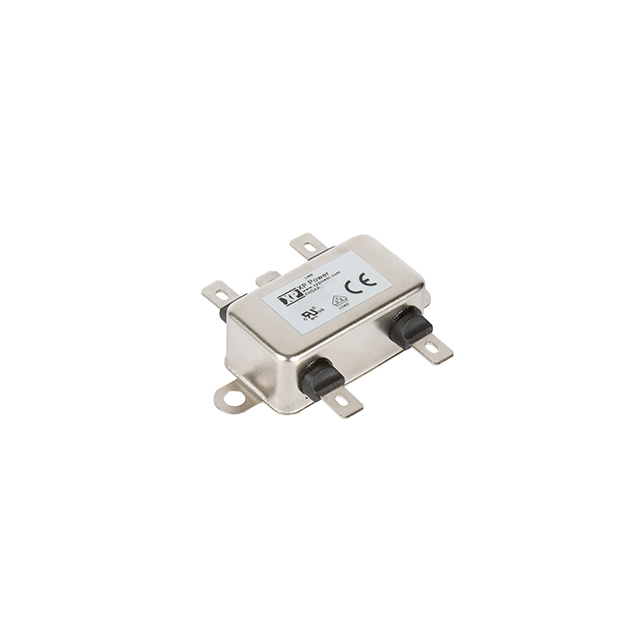

The XP Power FHSAA01A1FR is a single-phase EMI/EMC power line filter designed for chassis mounting. It supports an AC voltage rating of 250 VAC and a current capacity of 1 A, operating within a frequency range of DC to 400 Hz. The unit features quick connect terminals and includes integrated capacitance values of 6.6 nF and 100 nF. Physical dimensions are 44 mm in length, 24 mm in width, and 17.5 mm in height, with a weight of 43 g. It complies with EN60939-2 and ANSI/UL1283 standards.

Power Line Filter Modules Feature Summary

Provides electromagnetic interference suppression for single-phase AC power lines
Designed for secure chassis mounting applications
Utilizes quick connect terminal interfaces for circuit integration

Power Line Filter Modules Applications

Information Technology Equipment (ITE)
Medical electronic devices
Industrial control systems

Power Line Filter Modules Procurement Notes

Verify the specific datasheet version to confirm compliance certifications such as EN60939-2 and ANSI/UL1283. Ensure the 1 A current rating and 250 VAC voltage limits align with the target system requirements. Confirm that the chassis mount style and quick connect terminals match the mechanical design constraints of the final assembly.

Power Line Filter Modules Selection Notes

Select this component when a compact, single-phase filter is required for ITE or medical equipment. The 1 A rating suits low-power applications. Verify that the 44 mm x 24 mm footprint fits the available chassis space. Ensure the operating temperature range meets the environmental conditions of the installation site.

Power Line Filter Modules Part Context

This component belongs to the FHSM series of power line filters from XP Power. The series focuses on providing EMI/EMC filtering solutions for sensitive electronic equipment. These filters are engineered to meet international safety and performance standards for commercial and industrial use.
