FI105L250014-T

Overview

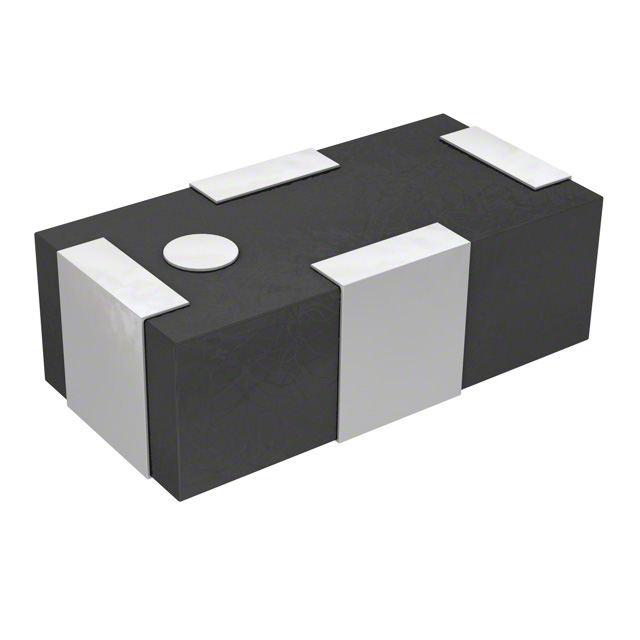

The FI105L250014-T is a multilayer ceramic low-pass filter manufactured by Taiyo Yuden. It operates within the 2.4 GHz to 2.5 GHz frequency range and is designed for surface-mount applications. The component utilizes a 0402 (1005 metric) package with four pins and a 50-ohm impedance. It is engineered to attenuate higher-frequency signals while passing lower frequencies, suitable for RF signal conditioning in compact electronic designs.

Feature Summary

• Multilayer ceramic construction for reliable high-frequency performance
• Low-pass filtering characteristic optimized for specific RF bands
• Compact 0402 surface-mount footprint for space-constrained layouts

Applications

• RF signal conditioning in wireless communication modules
• Harmonic suppression in transmitter output stages
• Interference filtering in mobile device RF front-ends

Procurement Notes

Verify the exact part number against official Taiyo Yuden documentation before procurement. Confirm that the 0402 package dimensions and pin configuration match your PCB layout requirements. Ensure compatibility with your assembly process specifications. Check for any recent lifecycle status updates or obsolescence notices directly from the manufacturer to avoid supply chain disruptions during production.

Selection Notes

Select this component when a low-pass filter is required for the 2.4–2.5 GHz band in a 0402 package. Compare insertion loss and stopband attenuation specifications against system requirements. Ensure the 50-ohm impedance matches your transmission line design. Verify thermal and mechanical reliability for the intended operating environment.

Part Context

This component belongs to Taiyo Yuden’s FI series of multilayer ceramic filters. These devices are widely used in RF applications requiring compact size and stable performance. The FI series offers various cutoff frequencies and package options to support diverse wireless standards and circuit architectures.

Replacement Considerations

Publicly confirmed substitute part numbers are not available in the provided source material. Consult Taiyo Yuden technical support or authorized distributors for verified alternatives if this component is unavailable.
