Product Detailed Parameters
- Description：RF FILTER BAND PASS 0805
- Series：FI
- Mfr：Taiyo Yuden
- Package：Tape & Reel (TR),Cut Tape (CT)
- Frequency：-
- Bandwidth：-
- Filter Type：Band Pass
- Ripple：-
- Insertion Loss：-
- Mounting Type：Surface Mount
- Package / Case：0805 (2012 Metric), 4 PC Pad
- Size / Dimension：0.079" L x 0.049" W (2.00mm x 1.25mm)
- Height (Max)：0.039" (1.00mm)
Download product information
Overview

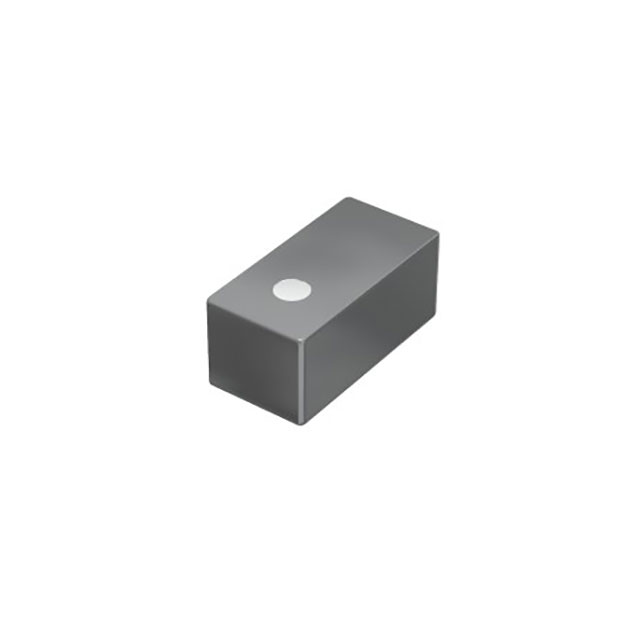

The FI212B3600FM-T is a band-pass RF filter manufactured by Taiyo Yuden, designed for EMI and RFI suppression applications. It operates within the LTE frequency range of 3400 to 3800 MHz. The component utilizes a ceramic construction housed in an 0805 (2012 Metric) surface-mount package with dimensions of 2.0 x 1.25 x 0.65 mm. It is supplied in tape and reel packaging and complies with RoHS standards.
Feature Summary
- Provides effective signal conditioning through band-pass filtering characteristics
- Engineered for EMI and RFI suppression on power lines and signal paths
- Utilizes compact ceramic construction suitable for space-constrained designs
Applications
- LTE communication systems operating in the 3400-3800 MHz range
- RF signal chains requiring out-of-band energy reduction
- EMI/RFI suppression circuits in portable devices
Procurement Notes
Verify current availability status as this part is scheduled for obsolescence and will be discontinued by the manufacturer. Confirm that the specific order suffix matches the required specifications, as suffixes may indicate variations in packaging or testing criteria. Ensure compatibility with existing design layouts before finalizing procurement decisions due to the end-of-life status.
Selection Notes
Select this component when a band-pass filter is required specifically for the 3400-3800 MHz LTE spectrum. The 0805 footprint offers a balance between performance and board space efficiency. Consider the ceramic technology for stable operation in RF environments. Evaluate alternative components if long-term supply continuity is a critical project requirement given the discontinuation notice.
Part Context
This component belongs to Taiyo Yuden's RF filter portfolio, which includes various solutions for antenna filtering and EMC applications. The FI series typically addresses signal integrity issues in wireless communications. Taiyo Yuden provides these filters to support noise reduction in high-frequency circuits, ensuring compliance with electromagnetic interference regulations in consumer and industrial electronics.
Replacement Considerations
Consult official datasheets for suggested alternates such as FSSCSR1N1G19H4PF-AJ. Verify electrical parameter equivalence including center frequency and bandwidth before substitution.
