FI212L062002-T

Overview

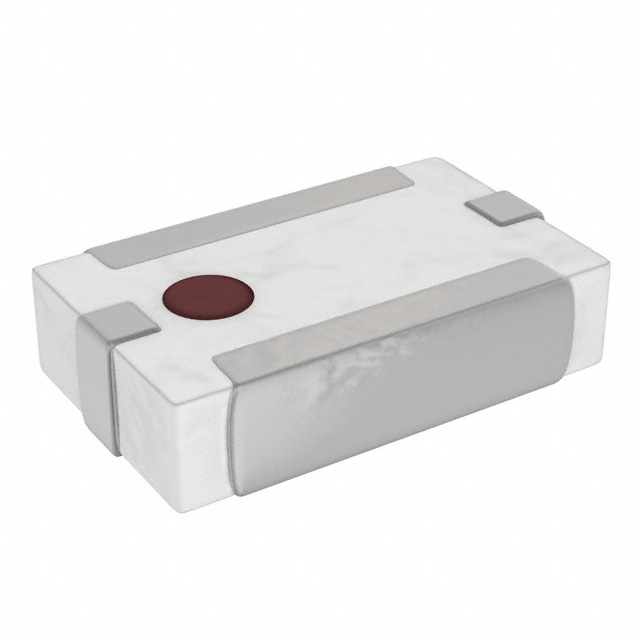

The FI212L062002-T is a low-pass RF filter manufactured by Taiyo Yuden, designed for digital television applications. It operates with a center frequency of 620 MHz and features a bandwidth of 300 MHz. The component exhibits an insertion loss of 0.9 dB. It is housed in an 0805 (2012 metric) surface-mount package and supports board mounting. This device belongs to the high-frequency filter category within signal conditioning products.

Feature Summary

• Provides low-pass filtering characteristics optimized for digital TV signal integrity
• Utilizes multilayer ceramic construction for compact surface-mount integration
• Engineered for stable performance across specified industrial temperature ranges

Applications

• Digital television receiver front-ends
• RF signal conditioning circuits
• High-frequency filter modules

Procurement Notes

Verify current availability status as this component may be subject to obsolescence notices. Confirm that the ordering suffix matches the required specifications exactly. Ensure compatibility with existing PCB footprints and reflow soldering profiles. Check for any product change notifications issued by Taiyo Yuden regarding this specific part number before finalizing procurement plans.

Selection Notes

Select this component when a 620 MHz center frequency low-pass filter is required for digital TV applications. The 0.9 dB insertion loss and 300 MHz bandwidth define its electrical performance envelope. The 0805 package size dictates the physical layout constraints. Verify that the operating temperature range meets the environmental requirements of the target system design.

Part Context

This part belongs to the high-frequency filter subcategory under signal conditioning products. It is distinct from baluns or diplexers within the same manufacturer's portfolio. The FI212 series includes various filter types with different frequency responses and package options. This specific model focuses on low-pass functionality for broadcast reception.

Replacement Considerations

Taiyo Yuden has issued Product Obsolescence Notification UTY-DN25-01D referencing this part. Designers should evaluate alternative components or updated series parts immediately. No direct substitute part numbers are confirmed in public documentation.
