FIHMA20C2F

Power Line Filter Modules Overview

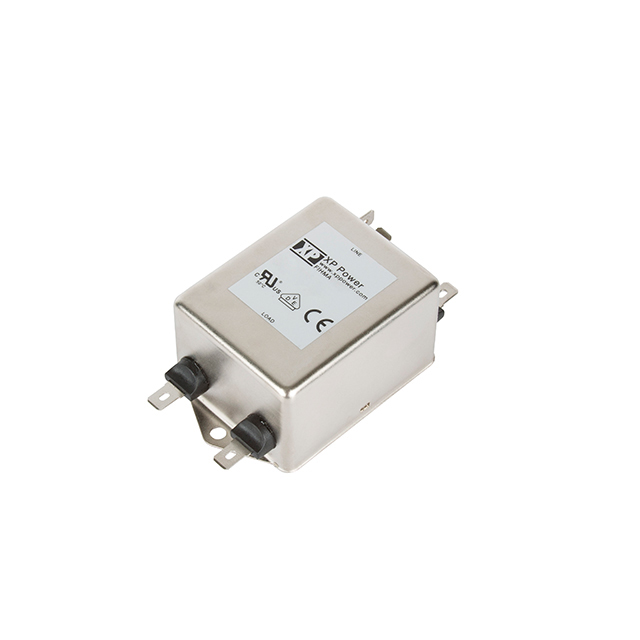

The XP Power FIHMA20C2F is a single-phase EMI filter designed for chassis mounting. It supports a current rating of 20 A and operates at voltages up to 250 Vac or 400 Hz. The unit features dual-stage filtering with a capacitance of 0.3 uF. It complies with EN60939-2 and ANSI/UL1283 standards. The operating temperature range spans from -40°C to 110°C.

Power Line Filter Modules Feature Summary

• Dual-stage EMI filtering architecture
• Chassis mount construction
• Quick connect terminal interface

Power Line Filter Modules Applications

• Medical equipment power conditioning
• Industrial control systems
• Information Technology Equipment (ITE)

Power Line Filter Modules Procurement Notes

Verify the specific datasheet version against the manufacturer's official documentation before procurement. Confirm that the quick connect terminals match the mating connector specifications in your design. Ensure the chassis mounting dimensions accommodate the 39.5 mm height constraint within your enclosure layout.

Power Line Filter Modules Selection Notes

Select this component when dual-stage attenuation is required for medical or industrial applications. Verify compatibility with 400 Hz operation if used in aerospace or specialized industrial environments. Ensure the 20 A continuous current rating meets the load requirements without exceeding thermal limits within the specified -40°C to 110°C range.

Power Line Filter Modules Part Context

This model belongs to the XP Power FIHM series of power line filters. These components are engineered for high-reliability environments requiring strict electromagnetic interference suppression. The series typically offers various current ratings and stage configurations to suit different power distribution needs.

Power Line Filter Modules Replacement Considerations

Consult the official XP Power datasheet for direct cross-reference part numbers. Verify pinout compatibility and mechanical footprint equivalence before substituting.
