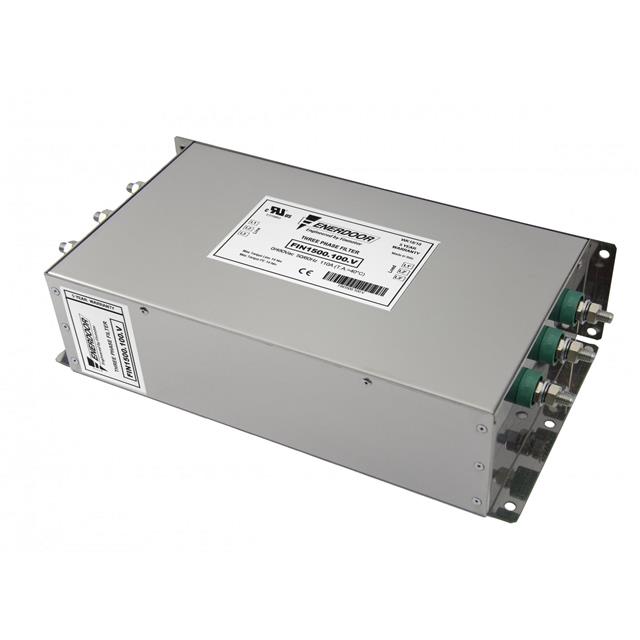

FIN1500.010.V

Power Line Filter Modules Overview

The Enerdoor FIN1500.010.V is a three-phase (Delta) EMC/EMI line filter module designed for industrial applications. It features a rated current of 10 A and operates at frequencies of 50/60 Hz. The unit utilizes a two-stage filtering architecture to suppress electromagnetic interference. Mounting is achieved via chassis installation using threaded posts with an M5 specification. The device is engineered to handle nominal voltages up to 600 Vac, ensuring compliance with standard industrial power requirements.

Power Line Filter Modules Feature Summary

• Two-stage EMI/RFI noise suppression architecture
• Chassis mount design with threaded post interface
• Three-phase Delta configuration compatibility

Power Line Filter Modules Applications

• Regenerative motor drive systems
• Industrial automation equipment
• Electrical control panels requiring EMC compliance

Power Line Filter Modules Procurement Notes

Verify the specific voltage rating requirement against the application's nominal supply, as the series supports both 480 Vac and 600 Vac variants. Confirm that the mounting hardware matches the M5 threaded post specification. Ensure the three-phase Delta configuration aligns with the system topology before procurement to avoid integration issues.

Power Line Filter Modules Selection Notes

Select this model for applications requiring compact, high-performance noise filtration in three-phase circuits. The 10 A rating suits moderate load currents. Consider the two-stage design for superior attenuation compared to single-stage alternatives. Verify thermal management needs within the enclosure, as passive filters generate heat under load.

Power Line Filter Modules Part Context

This component belongs to the Enerdoor FIN1500 series, which encompasses a range of power line filter modules. The series is characterized by its modular design and suitability for various industrial electromagnetic compatibility challenges. It complements Enerdoor's broader portfolio of EMI/RFI filters and harmonic mitigation solutions.

Power Line Filter Modules Replacement Considerations

Cross-reference with other Enerdoor models in the FIN1500 series for alternative current ratings or voltage configurations. Ensure any substitute maintains the same three-phase Delta topology and chassis mounting dimensions to preserve mechanical fit.
