FIN538.030.M

Power Line Filter Modules Overview

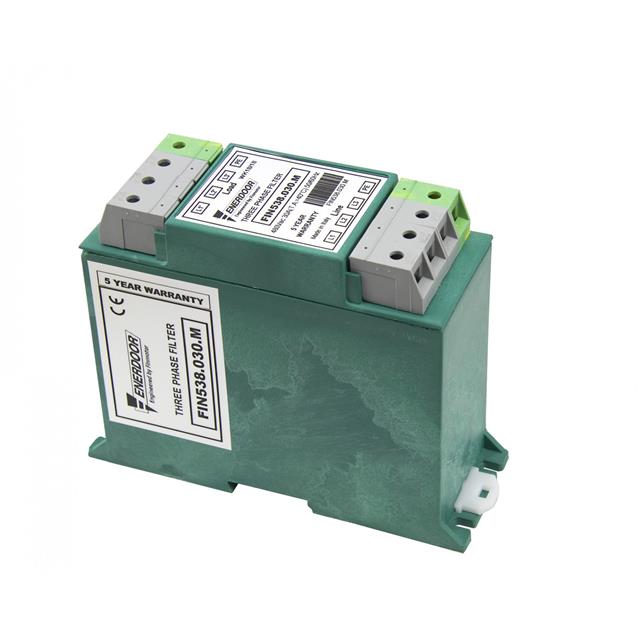

The Enerdoor FIN538.030.M is a three-phase (Delta) EMC/EMI line filter designed for industrial applications. It features a rated current of 30 A and operates at 50/60 Hz with a single-stage configuration. The unit utilizes terminal block connections and supports a nominal AC phase-to-phase voltage of 2.2 kV, while maintaining a standard nominal voltage rating of 480 Vac. This component provides high differential and common mode attenuation to ensure electromagnetic compatibility in compact environments.

Power Line Filter Modules Feature Summary

• Delivers high attenuation for both differential and common mode noise interference
• Ensures effective electromagnetic compatibility compliance in industrial settings
• Designed for compact installation within automation and machinery systems

Power Line Filter Modules Applications

• Industrial automation machinery
• Electrical control panels requiring UL508A SCCR compliance
• Equipment needing protection against radio frequency interference

Power Line Filter Modules Procurement Notes

Verify the specific ordering suffix matches the required electrical characteristics. Confirm that the terminal block interface aligns with existing panel wiring standards. Ensure the Delta configuration suits the three-phase power supply infrastructure. Cross-reference the 30 A rating with actual load requirements to prevent overload conditions during operation.

Power Line Filter Modules Selection Notes

Select this model when high noise suppression is critical for sensitive industrial electronics. The 30 A capacity suits moderate-power machinery drives. Consider the compact form factor for space-constrained enclosures. Verify that the 480 Vac nominal rating matches the facility's distribution network voltage levels.

Power Line Filter Modules Part Context

Enerdoor specializes in electromagnetic solutions for industrial and medical sectors. The FIN538 series addresses EMC challenges by filtering conducted emissions. These filters help manufacturers meet IEC and EN standards for emission and immunity. The brand emphasizes providing certified solutions that simplify CE marking processes for European exports.

Power Line Filter Modules Replacement Considerations

No public confirmed substitute part numbers are available for this specific Enerdoor model. Direct replacement requires matching the three-phase Delta topology and 30 A current rating exactly.
