FIN57.025.V

Power Line Filter Modules Overview

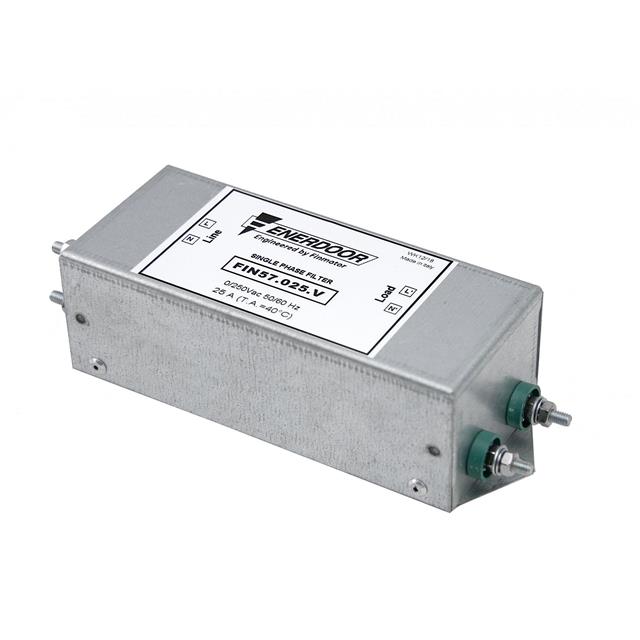

The Enerdoor FIN57.025.V is a standard single-phase EMI/RFI filter module designed for power line applications. It operates at a nominal voltage of 250 Vac and supports rated currents ranging from 6 to 25A, with this specific model configured for 25A. The unit functions within a frequency range of 50–60 Hz and withstands a potential test voltage of 1750 Vdc between phases for two seconds. Key electrical characteristics include low leakage current and high attenuation performance, ensuring effective suppression of electromagnetic interference in industrial and medical equipment installations.

Power Line Filter Modules Feature Summary

• Provides effective suppression of electromagnetic interference (EMI) and radio frequency interference (RFI) for sensitive electronic circuits
• Features low leakage current design to enhance safety and compliance in electrical installations
• Offers excellent attenuation performance to protect equipment from environmental noise and internal disturbances

Power Line Filter Modules Applications

• Industrial automation systems requiring EMC compliance
• Medical equipment installations needing stable power quality
• Machine tool control panels subject to UL508a standards

Power Line Filter Modules Procurement Notes

Verify the exact part number FIN57.025.V against official Enerdoor documentation to confirm the 25A rating and 250 Vac specification. Ensure compatibility with existing panel space and mounting requirements. Confirm that the supplier provides valid traceability and certification documents, particularly regarding UL508a SCCR ratings if required for your specific application environment.

Power Line Filter Modules Selection Notes

Select this component when a single-phase filter with a 25A capacity is required for 250 Vac systems. Consider its compact module form factor for integration into control panels. Evaluate the need for UL508a certification and SCCR ratings, which Enerdoor explicitly provides for many products in this series, unlike some competitors.

Power Line Filter Modules Part Context

This component belongs to the Enerdoor FIN57 series of standard single-phase filters. The series covers various current ratings from 6A to 25A, all sharing similar architectural benefits such as low leakage and high attenuation. The FIN57 series is positioned for applications demanding robust EMC solutions in industrial and medical sectors, often supporting UL508a compliance requirements.

Power Line Filter Modules Replacement Considerations

Consult Enerdoor's official substitution guide or datasheet for direct replacements. Generic cross-references may not match the specific SCCR ratings or leakage current specifications of the original Enerdoor unit.
