FK0100001

Oscillators Overview

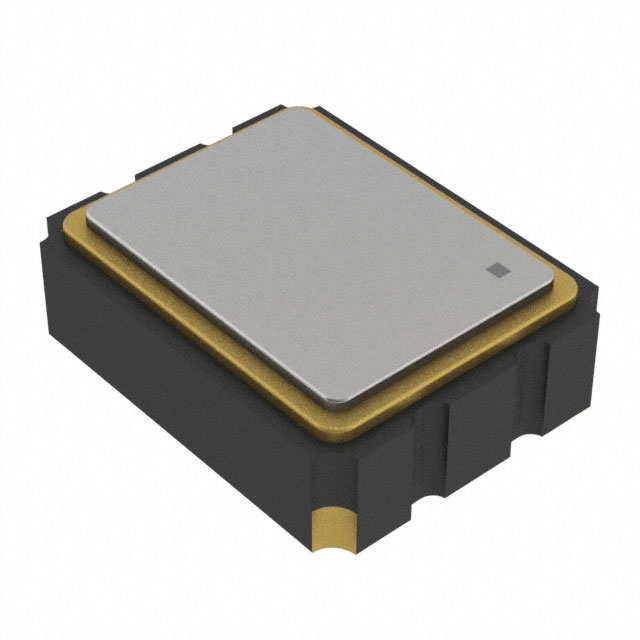

The FK0100001 is a standard clock oscillator manufactured by Diodes Incorporated, classified as a CMOS low jitter crystal clock oscillator (XO). It operates at a frequency of 1 MHz with a frequency stability of 50 PPM and a load capacitance of 15 pF. The device supports a supply voltage range from 1.62 V to 1.98 V and features a CMOS output format. It is designed for surface mount (SMD/SMT) applications within an operating temperature range of -20°C to +70°C. The component measures 3.2 mm in length, 2.5 mm in width, and 1 mm in height, belonging to the FK series.

Oscillators Feature Summary

• CMOS low jitter crystal clock oscillator architecture
• Surface mount SMD/SMT package configuration
• Enable/Disable control functionality

Oscillators Applications

• Digital signal processing systems requiring precise timing
• Microcontroller clock source generation
• Communication interface synchronization

Oscillators Procurement Notes

Verify the specific ordering suffix against the manufacturer datasheet to ensure correct packaging and electrical parameters. Confirm RoHS compliance status and lead times directly with authorized distributors. Ensure the selected variant matches the required supply voltage and frequency specifications for the target application design.

Oscillators Selection Notes

Select this component when a 1 MHz CMOS output is required within a 1.62 V to 1.98 V supply range. Consider the 50 PPM stability and -20°C to +70°C temperature range for environmental suitability. Verify the 3.2mm x 2.5mm footprint compatibility with the PCB layout constraints before integration.

Oscillators Part Context

This part belongs to the FK series of standard oscillators from Diodes Incorporated. It serves as a precision timing reference for electronic circuits requiring stable clock signals. The device integrates a crystal resonator with CMOS driver circuitry in a compact surface-mount package.

Oscillators Replacement Considerations

Consult official cross-reference lists or distributor substitution tools for verified equivalent parts. Ensure any replacement matches the 1 MHz frequency, CMOS output type, and compatible supply voltage range.
