FK10M7000SVA20

Overview

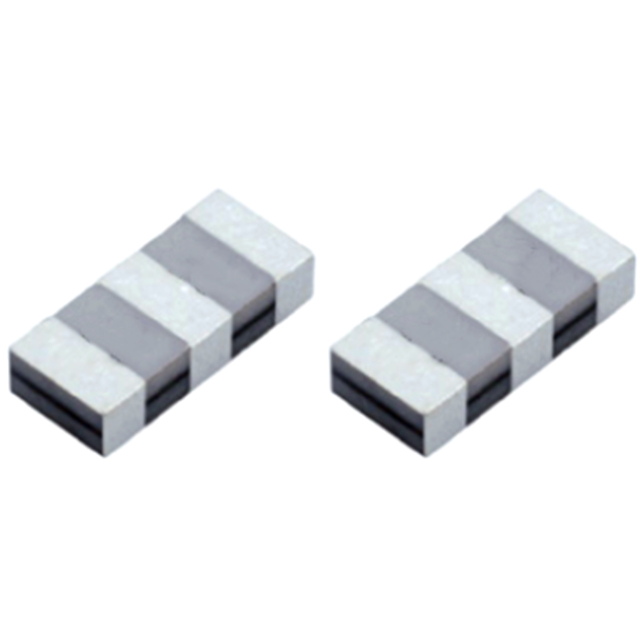

The FK10M7000SVA20 is a surface-mount MHz ceramic filter from the FK Series by NextGen Components. It operates at a center frequency of 10.700MHz with a 3dB bandwidth of 330±50kHz and an insertion loss of 4.0±2.0dB. The component features a three-pad SMD package with dimensions of 7.0mm length, 3.0mm width, and 1.5mm height.

Feature Summary

• Designed for FM signal processing applications
• Utilizes a compact surface-mount footprint for automated assembly

Applications

• FM radio receiver intermediate frequency filtering
• Consumer electronics audio circuits
• Broadcast equipment signal conditioning

Procurement Notes

Verify the specific datasheet version (R1010-FK10M7000SVA20) to confirm parameter tolerances. Ensure compatibility with existing PCB land patterns for the 7.0x3.0x1.5mm case size. Cross-reference impedance requirements if integrating into sensitive RF stages.

Selection Notes

Select this component when a 10.7MHz center frequency with approximately 330kHz bandwidth is required. Consider the 4.0±2.0dB insertion loss specification for system gain calculations. The SMD format supports high-volume manufacturing processes.

Part Context

This part belongs to the FK Series of MHz ceramic filters manufactured by NextGen Components. It serves as a specialized passive component for frequency selection in analog communication systems, distinct from general-purpose capacitors or resistors.

Replacement Considerations

Consult official substitution lists for equivalent 10.7MHz ceramic filters. Verify mechanical dimensions and pinout compatibility before replacing with alternative manufacturers' parts.
