FK2125T186AL-T

Overview

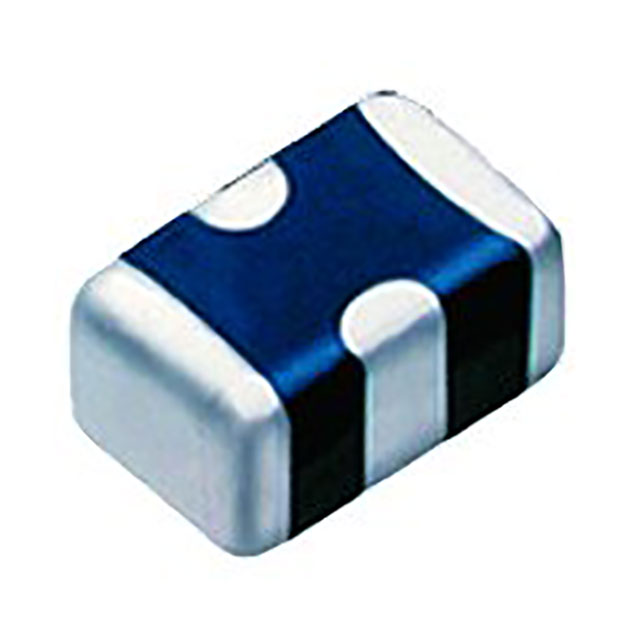

The FK2125T186AL-T is a multilayer EMI suppression filter manufactured by Taiyo Yuden. It features an LC (T-type) low-pass configuration with three components in a single package. The device operates at a cutoff frequency of 18 MHz and has a maximum voltage rating of 10 V. It supports a continuous current of 100 mA and exhibits a resistance of 2 Ohms. The component is housed in a standard 0805 surface-mount package, measuring 2 mm in length, 1.25 mm in width, and 1.05 mm in height.

Feature Summary

• Integrates LC T-type topology for compact EMI filtering
• Provides third-order low-pass signal attenuation
• Designed for high-frequency noise suppression in RF circuits

Applications

• LTE module noise filtering
• RF circuit interference suppression
• High-speed digital line protection

Procurement Notes

Verify the exact suffix AL-T against official Taiyo Yuden documentation to confirm the specific 18 MHz cutoff characteristic. Ensure compatibility with 10 V operating limits and 100 mA current ratings for the target application. Confirm RoHS compliance status through the manufacturer's latest datasheet before integration.

Selection Notes

Select this component when a compact, third-order low-pass filter is required for LTE or RF applications. The 0805 footprint suits space-constrained designs. Verify that the 18 MHz cutoff aligns with the signal bandwidth requirements and that the 2 Ohm resistance does not impact DC bias conditions.

Part Context

This part belongs to the FK2125T series of multilayer EMI suppression filters from Taiyo Yuden. These components are engineered for high-density PCB layouts, offering integrated filtering solutions in small SMD packages. The series targets noise reduction in wireless communication modules and high-speed data interfaces.

Replacement Considerations

Public confirmed substitute part numbers are not available in the provided source material.
