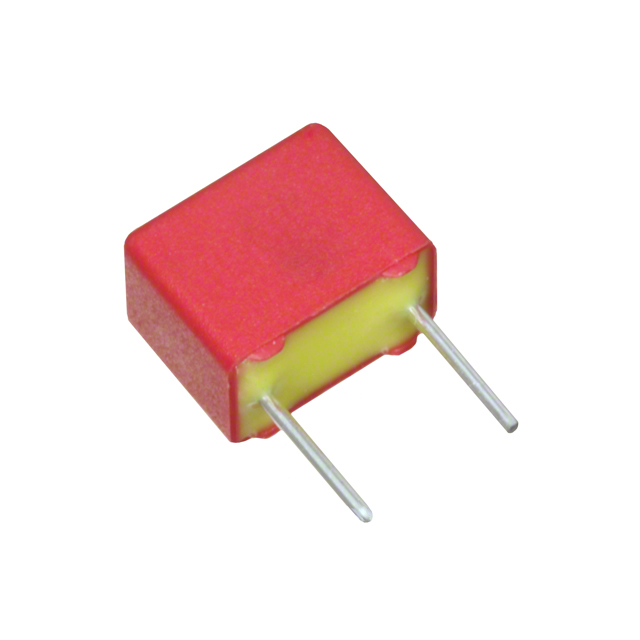

FKP2O111001I00JSSD

FKP2O111001I00JSSD is listed in the Film Capacitors range at ChipApex. The manufacturer field lists WIMA. Its product description is CAP FILM 1000PF 5% 1KVDC RAD. Review the specifications below when checking this part for your BOM.

Film Capacitors specifications for FKP2O111001I00JSSD

• Description：CAP FILM 1000PF 5% 1KVDC RAD
• Series：-
• Mfr：WIMA
• Package：Bulk
• Capacitance：1000 pF
• Tolerance：±5%
• Voltage Rating - AC：250V
• Voltage Rating - DC：1000V (1kV)
• Dielectric Material：Polypropylene (PP)
• Operating Temperature：-55°C ~ 100°C
• Mounting Type：Through Hole
• Package / Case：Radial
• Size / Dimension：0.283" L x 0.256" W (7.20mm x 6.50mm)
• Height - Seated (Max)：0.315" (8.00mm)
• Termination：PC Pins
• Lead Spacing：0.197" (5.00mm)
• Applications：High Frequency, Switching; High Pulse, DV/DT
• Ratings：-
• Features：-

Film Capacitors datasheet and documents for FKP2O111001I00JSSD
