FL2500132

Crystals Overview

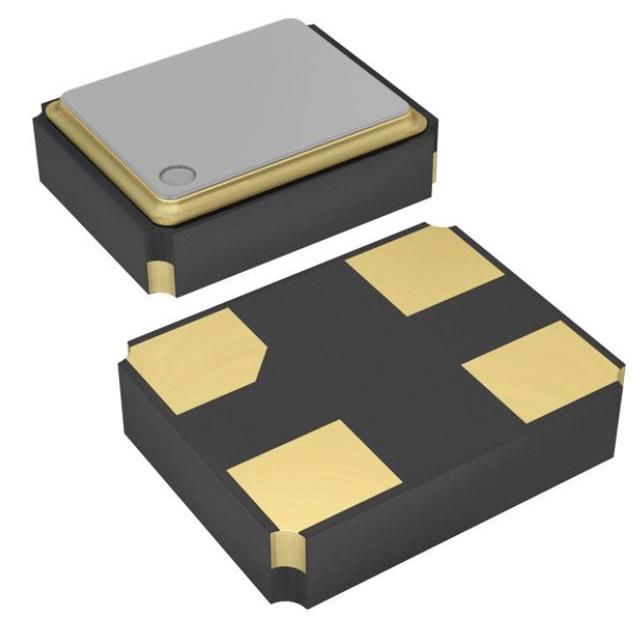

The FL2500132 is a quartz crystal oscillator manufactured by Diodes Incorporated, belonging to the SaRonix-eCera series. It operates at a fundamental frequency of 25 MHz with a tolerance of ±20 ppm and a stability of ±20 ppm. The component features a load capacitance of 10 pF and an equivalent series resistance (ESR) of 60 Ohms. It supports a drive level of 10 uW and functions within a temperature range of -40°C to +85°C. The device utilizes a surface-mount package measuring 3.2 mm in length, 2.5 mm in width, and 0.65 mm in height.

Crystals Feature Summary

• Utilizes ceramic construction for robust mechanical stability
• Designed for surface-mount technology integration
• Provides precise frequency control for digital circuits

Crystals Applications

• Microcontroller clock sources
• Communication interface timing
• Digital signal processing systems

Crystals Procurement Notes

Verify the specific load capacitance requirement of your circuit design against the component's 10 pF specification to ensure accurate oscillation. Confirm that the operating environment remains within the stated -40°C to +85°C range. Check datasheet details for soldering profile recommendations to maintain component integrity during assembly processes.

Crystals Selection Notes

Select this component when a 25 MHz reference signal is required with tight frequency tolerance. Ensure the application circuit can support the specified 10 uW drive level to prevent overdriving the crystal. Verify that the PCB layout accommodates the 3225 package dimensions and allows for proper grounding of the SMD terminals.

Crystals Part Context

This part belongs to the FL series of ceramic crystals from Diodes Incorporated. These components are engineered for general-purpose timing applications where size constraints and reliability are critical. The series offers various frequency options within standardized surface-mount packages, facilitating easy integration into compact electronic designs.

Crystals Replacement Considerations

Consult official substitution lists for compatible alternatives. Cross-reference specifications such as load capacitance, ESR, and frequency tolerance to ensure functional equivalence. Verify package compatibility before replacing the original component.
