FL2D-A0-103

Common Mode Chokes Overview

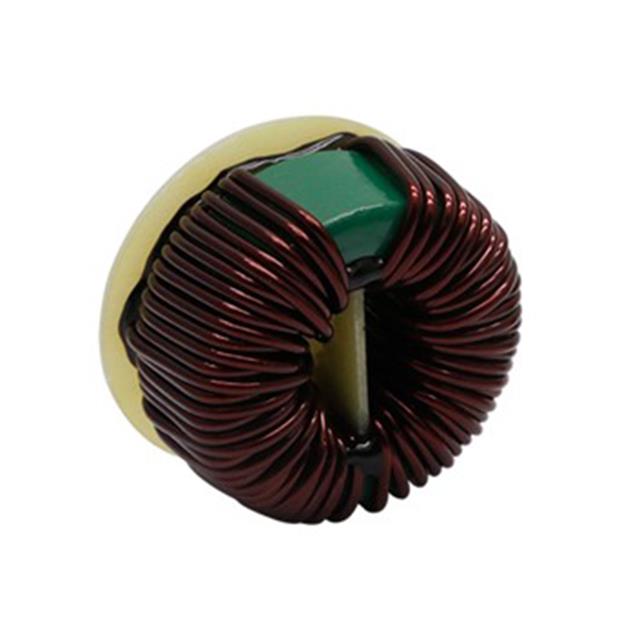

The FL2D-A0-103 is a common mode choke manufactured by Mornsun America, LLC. It features a vertical package with four PC pins and is designed for signal line applications. The component provides effective interference suppression capabilities while maintaining high reliability. It complies with UL508 isolation requirements and adheres to RoHS standards. The device exhibits good temperature characteristics and a compact physical size suitable for space-constrained designs.

Common Mode Chokes Feature Summary

• Effective interference suppression capability
• High reliability performance
• Compact physical dimensions

Common Mode Chokes Applications

• Signal line filtering
• Industrial equipment EMC protection
• Power supply input stages

Common Mode Chokes Procurement Notes

Verify the specific suffix designation against official Mornsun documentation to ensure correct pin configuration and electrical ratings. Confirm RoHS compliance status and UL certification details directly from the manufacturer's datasheet before procurement. Ensure the vertical package type matches the PCB footprint requirements.

Common Mode Chokes Selection Notes

Select this component when compact common mode filtering is required for signal lines. Verify that the inductance value meets the specific frequency attenuation needs of the application. Ensure the operating temperature range aligns with the environmental conditions of the target system.

Common Mode Chokes Part Context

This part belongs to the FL2D series of common mode chokes produced by Mornsun Science & Technology Ltd. The series is characterized by its vertical mounting style and suitability for various electronic applications requiring electromagnetic interference reduction.

Common Mode Chokes Replacement Considerations

Consult official Mornsun substitution guides for verified alternatives. Cross-reference specifications such as inductance, current rating, and package dimensions to ensure compatibility.
