FL2D-C5-142

Common Mode Chokes Overview

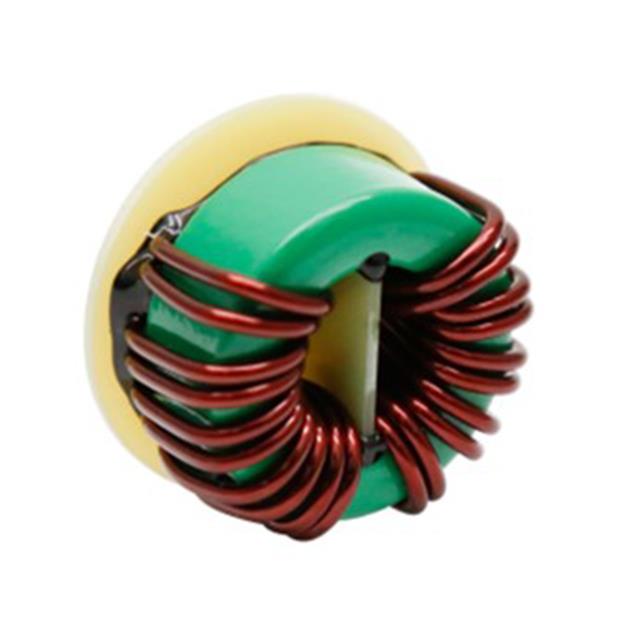

The FL2D-C5-142 is a through-hole common mode choke manufactured by Mornsun America, LLC. It features an inductance of 1400µH per line and supports a maximum current of 35A. The device has a typical DC resistance of 5mΩ per line and operates within a temperature range of -40°C to +105°C. Packaged in trays, it is classified under EMC filters with RoHS compliance.

Common Mode Chokes Feature Summary

• Provides common mode noise suppression for power lines
• Supports high current handling up to 35A
• Designed for through-hole mounting applications

Common Mode Chokes Applications

• EMC filtering in industrial power supplies
• Noise suppression in AC/DC converter inputs
• Common mode interference reduction in motor drives

Common Mode Chokes Procurement Notes

Verify the specific package type and lead time requirements before ordering. Confirm that the 35A current rating meets your system's peak load demands. Ensure the through-hole footprint matches your PCB layout. Check for RoHS compliance documentation if required by your region. Validate the operating temperature range against your environmental conditions.

Common Mode Chokes Selection Notes

Select this component when high current capacity and robust common mode rejection are required. The 1400µH inductance offers significant impedance at high frequencies. Consider the 5mΩ DC resistance for efficiency calculations. The through-hole design provides mechanical stability for heavy-duty applications. Ensure compatibility with existing thermal management strategies.

Common Mode Chokes Part Context

This component belongs to Mornsun's FL2D series of EMC filters. It is designed for use in environments requiring reliable noise suppression. The series includes various inductance and current ratings. Mornsun specializes in magneto-electric isolation and power conversion technologies. This part is suitable for industrial and commercial power electronics.

Common Mode Chokes Replacement Considerations

Direct substitutes may include other common mode chokes with similar inductance and current ratings. Verify pin compatibility and physical dimensions before replacement. Ensure the replacement part meets the same voltage and temperature specifications. Consult manufacturer datasheets for equivalent performance characteristics.
