FLLD3130AMHT6

Power Line Filter Modules Overview

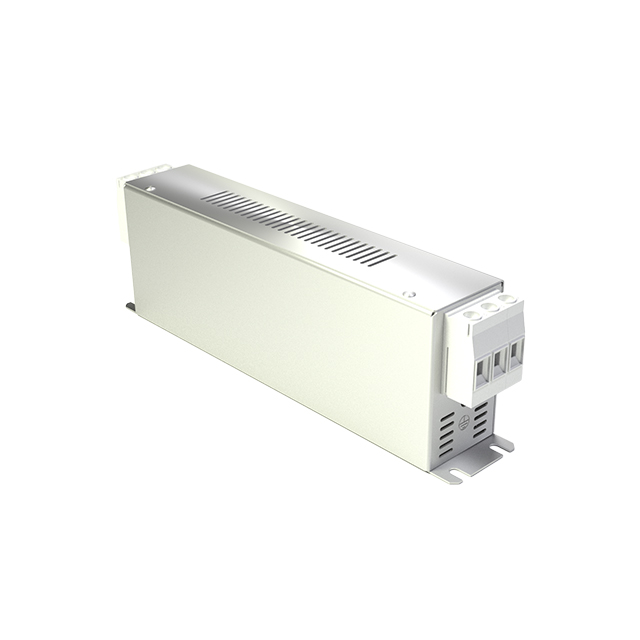

The KEMET FLLD3130AMHT6 is a three-phase (Delta) EMC/EMI line filter designed for industrial power applications. It supports a rated current of 130 A at 50/60 Hz and operates with a voltage rating of 530 VAC. The unit features a single-stage architecture with terminal block connections for secure wiring. Physical dimensions are 240x90x150 mm, with mounting holes spaced at 255x65 mm. It has a maximum leakage current of 4.7 mA and a power dissipation capacity of 40 W. The operating temperature range extends from -25°C to 100°C, and the gross weight is approximately 4.2871 kg.

Power Line Filter Modules Feature Summary

• Compact chassis-mount design suitable for space-constrained industrial enclosures
• Terminal block interface enables quick and easy installation without specialized tools
• Single-stage filtering architecture provides effective EMI suppression for three-phase systems

Power Line Filter Modules Applications

• Motor drives and servo drive systems
• Regenerative drives and battery chargers
• Inverters and power converters
• Industrial robotics equipment

Power Line Filter Modules Procurement Notes

Verify that the specific order matches the FLLD3130AMHT6 designation, as suffixes may indicate different ratings or configurations within the FLLD-MH series. Confirm terminal block compatibility with existing cabling infrastructure. Ensure environmental conditions remain within the specified -25°C to 100°C operational range to maintain performance integrity and safety compliance during deployment.

Power Line Filter Modules Selection Notes

Select this component when a general-purpose, compact solution is required for three-phase Delta systems handling up to 130 A. The terminal block style simplifies integration compared to screw-terminal alternatives. Consider the physical footprint of 240x90x150 mm for panel layout planning. Evaluate thermal management requirements given the 40 W power dissipation specification under full load conditions in enclosed environments.

Power Line Filter Modules Part Context

This model belongs to the KEMET FLLD-MH series, which focuses on slim, general-performance filters for industrial machinery. The series emphasizes ease of installation through standardized terminal blocks while maintaining robust electromagnetic interference suppression capabilities for sensitive electronic loads in demanding electrical environments.

Power Line Filter Modules Replacement Considerations

Cross-reference with other FLLD3130 variants if current ratings or voltage specifications differ. Verify mechanical mounting hole patterns match existing chassis cutouts. Ensure replacement units maintain the same terminal block configuration to avoid rewiring modifications during system upgrades or maintenance cycles.
