FLLD4200ATHT7

Power Line Filter Modules Overview

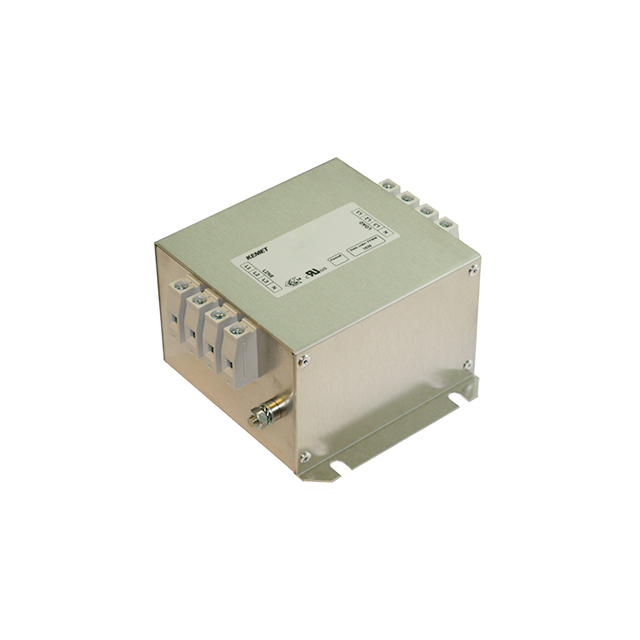

The KEMET FLLD4200ATHT7 is a three-phase (Wye) EMC/EMI line filter designed for industrial power applications. It supports a rated current of 200 A and operates at voltages up to 530 V AC across 50 Hz and 60 Hz frequencies. The unit features a single-stage filtering architecture with terminal block connections and chassis mount installation. Its physical dimensions are 160 mm in length, 125 mm in width, and 170 mm in height. Compliance standards include UL and IEC/EN regulations.

Power Line Filter Modules Feature Summary

• Single-stage EMI/RFI noise suppression for three-phase power lines
• Terminal block interface for secure electrical connections
• Chassis mount design for robust industrial integration
• Compliance with UL and IEC/EN safety standards

Power Line Filter Modules Applications

• Switch mode power supplies
• Servo drives and robotics systems
• Regenerative drives and inverters
• Battery charging equipment

Power Line Filter Modules Procurement Notes

Verify the specific datasheet version as this part number may be marked obsolete in certain distributor catalogs. Confirm that the terminal block configuration matches your wiring requirements. Ensure the chassis mounting holes align with your enclosure specifications. Check for updated compliance certifications if required by local regulations. Validate the voltage rating against your system's peak operating conditions before procurement.

Power Line Filter Modules Selection Notes

Select this component when high-current three-phase filtering is required for sensitive industrial electronics. The 200 A rating suits heavy-duty machinery and large drive systems. Consider the chassis mount form factor for panel integration where space allows. Verify compatibility with Wye-connected systems rather than Delta configurations. Evaluate thermal management needs based on the enclosed environment.

Power Line Filter Modules Part Context

This model belongs to the KEMET FLLD4-TH series of power line filters. The series provides general performance EMC solutions for various industrial power conversion applications. Other models in the family offer different current ratings and voltage capabilities while maintaining similar mounting and connection styles.

Power Line Filter Modules Replacement Considerations

Publicly confirmed substitute part numbers are not available in the provided documentation. Consult KEMET technical support for direct equivalents or cross-reference options within the FLLD4 series.
