FLLDU200A945I0

Overview

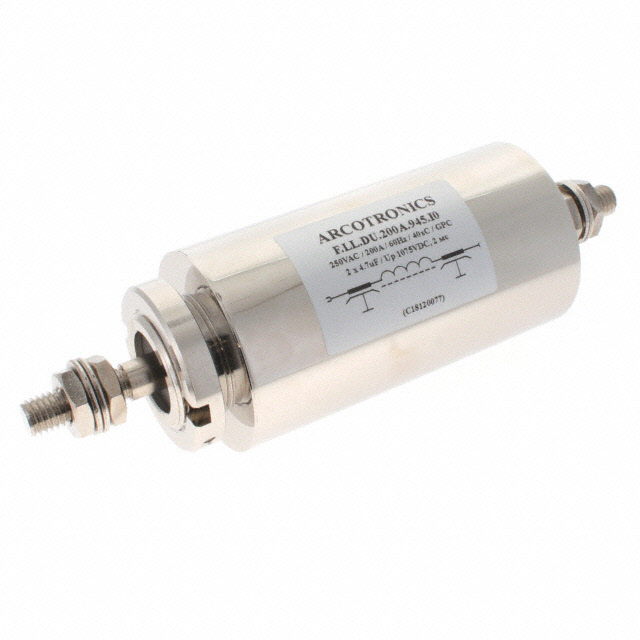

The KEMET FLLDU200A945I0 is a single-stage EMI power line filter designed for industrial applications. It features a voltage rating of 250 VAC and 350 VDC, with a current capacity of 200 A. The unit utilizes screw terminal connections and includes an M32 metric nut for chassis mounting. Certified under UL and IEC/EN standards, it operates within a temperature range of -40°C to +85°C. The filter employs LC technology to provide effective noise suppression in power systems.

Feature Summary

• Optimized geometry for high insertion loss performance
• Compact design facilitating rapid installation on industrial equipment
• Robust construction suitable for demanding operational environments

Applications

• Switch-mode power supplies
• Industrial robotics systems
• Battery chargers
• Power converters
• Uninterruptible Power Supply (UPS) machines

Procurement Notes

Verify the specific part number against official KEMET documentation to ensure compatibility with system requirements. Confirm that the M32 metric nut configuration matches the mounting panel specifications. Check for updated compliance certifications such as UL and IEC/EN before finalizing procurement decisions. Ensure the 200 A current rating aligns with the maximum load expectations of the target application.

Selection Notes

Select this component when a high-current single-phase filter is required for industrial machinery. The 200 A rating distinguishes it from lower-capacity variants in the FLLD series. Consider the physical dimensions and chassis mount style during mechanical integration. Verify that the 250 VAC input voltage meets the local power distribution standards. Evaluate the need for the specific M32 termination type versus other available options.

Part Context

This model belongs to the KEMET FLLD series, which comprises high-performance EMI filters. The series is characterized by compact geometries and screw terminal blocks for easy integration. These filters are engineered to meet stringent EMC requirements in various industrial sectors. The FLLDU variant specifically denotes the inclusion of metric nuts for secure mounting.

Replacement Considerations

Consult official KEMET substitution guides for verified alternatives. Cross-reference electrical ratings and physical dimensions before swapping components. Generic equivalents may not match the specific insertion loss characteristics or mounting hardware of the original part.
