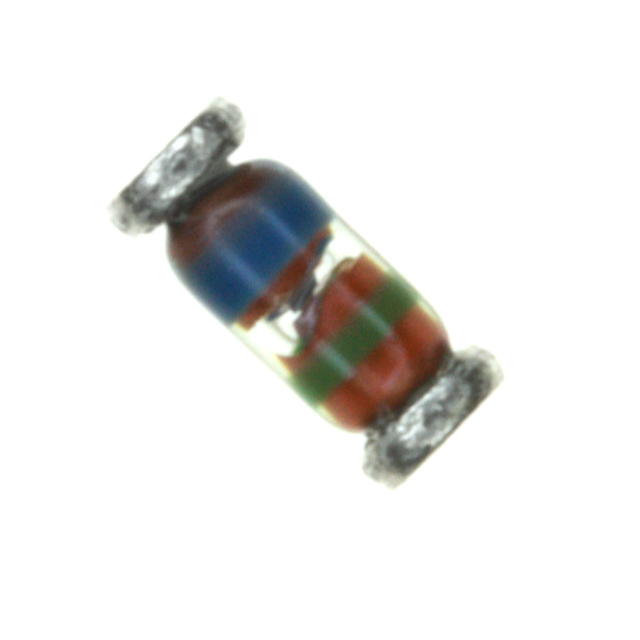

FLZ3V0B

$0.03

Description：DIODE ZENER 3.1V 500MW SOD80
Series：-
Mfr：onsemi
Package：Tape & Reel (TR)

SKU:d3c07a105000 Category: Single Zener Diodes Brand: onsemi

Consult the customer manager about the wholesale price.

consultation hotline：86-132-6715-2157

email：[email protected]
Contact the product manager for consultation. One-stop consultation is available.

Do you want a lower wholesale price? Please send us your inquiry and we will reply immediately.

Product introduction

FLZ3V0B is listed in the Single Zener Diodes range at ChipApex. The manufacturer field lists onsemi. Its product description is DIODE ZENER 3.1V 500MW SOD80. Review the specifications below when checking this part for your BOM.

Single Zener Diodes specifications for FLZ3V0B

Description：DIODE ZENER 3.1V 500MW SOD80
Series：-
Mfr：onsemi
Package：Tape & Reel (TR)
Voltage - Zener (Nom) (Vz)：3.1 V
Tolerance：±3%
Power - Max：500 mW
Impedance (Max) (Zzt)：35 Ohms
Current - Reverse Leakage @ Vr：35 µA @ 1 V
Operating Temperature：-65°C ~ 175°C
Mounting Type：Surface Mount
Package / Case：DO-213AC, MINI-MELF, SOD-80
Voltage - Forward (Vf) (Max) @ If：1.2 V @ 200 mA
Grade：-
Qualification：-

Single Zener Diodes datasheet and documents for FLZ3V0B

FLZ3V0B

Single Zener Diodes Overview

The FLZ3V0B is a single Zener diode manufactured by onsemi, housed in an SOD-80 surface-mount package. It features a nominal Zener voltage of 3.1 V with a specified range of 3.01 V to 3.22 V. The device supports a maximum power dissipation of 500 mW and exhibits a reverse current of 35 µA at 1 V. Its impedance (Zzt) is rated at 35 Ω.

Single Zener Diodes Feature Summary

Provides stable voltage regulation within a tight tolerance band for precision reference applications.

Single Zener Diodes Applications

Voltage reference circuits
Over-voltage protection
Clamping applications

Single Zener Diodes Procurement Notes

Verify the specific datasheet revision and ordering information directly from onsemi official documentation before procurement. Confirm that the SOD-80 package dimensions and thermal characteristics align with your PCB layout requirements. Ensure compliance with RoHS directives if applicable to your manufacturing standards.

Single Zener Diodes Selection Notes

Select this component when a low-cost, small-footprint Zener diode is required for voltage clamping or reference purposes. The SOD-80 package offers a compact solution suitable for space-constrained designs. Consider the 500 mW power rating and 35 Ω impedance when designing for thermal management and signal integrity.

Single Zener Diodes Part Context

This part belongs to onsemi's standard discrete semiconductor portfolio, specifically within the Zener diode category. It is designed for general-purpose electronic applications requiring reliable voltage regulation. The SOD-80 package is commonly used in consumer electronics and industrial equipment where board space is limited.

Single Zener Diodes Replacement Considerations

Consult onsemi official documentation for verified substitute part numbers. Do not assume cross-compatibility with other manufacturers' parts without verifying electrical parameters and physical dimensions.
