FLZ9V1C

Single Zener Diodes Overview

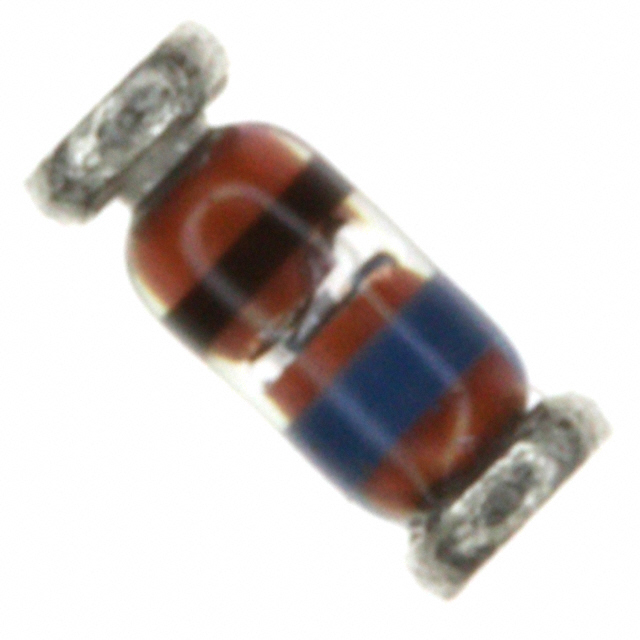

The FLZ9V1C is a single Zener diode manufactured by onsemi, designed for surface-mount applications. It features a nominal Zener voltage of 9.09 V and a maximum power dissipation of 500 mW. The component is housed in an SOD-80 package, which corresponds to the DO-213AC or MINI-MELIF form factor. This device is classified under discrete semiconductor products, specifically within the single Zener diode category.

Single Zener Diodes Feature Summary

• Surface-mount construction utilizing the SOD-80 package format
• Single Zener diode configuration for voltage regulation
• Rated for 500 mW power dissipation

Single Zener Diodes Applications

• Voltage reference circuits
• Overvoltage protection
• Clamping applications

Single Zener Diodes Procurement Notes

Verify the specific ordering suffix and tape/reel specifications against the official onsemi datasheet before procurement. Confirm that the SOD-80 package variant matches the design requirements. Ensure compliance with RoHS directives if applicable to the target market. Cross-reference the part number with authorized distributors to confirm authenticity and availability status.

Single Zener Diodes Selection Notes

Select this component when a 9.1 V Zener reference is required in a compact surface-mount footprint. The 500 mW rating supports moderate current levels. Consider the thermal characteristics of the SOD-80 package for heat dissipation needs. Compare leakage current and impedance parameters from the datasheet against circuit sensitivity requirements.

Single Zener Diodes Part Context

This part belongs to onsemi's portfolio of discrete semiconductor diodes. It serves as a fundamental passive-active hybrid component for analog signal conditioning and power management tasks. The SOD-80 package allows for automated assembly in high-volume manufacturing environments typical for consumer and industrial electronics.

Single Zener Diodes Replacement Considerations

Consult the official onsemi replacement guide for direct equivalents. Verify pinout compatibility and electrical parameter tolerances for any cross-brand substitutes. Ensure the alternative device meets the same voltage and power ratings.
