FM10-100

Power Line Filter Modules Overview

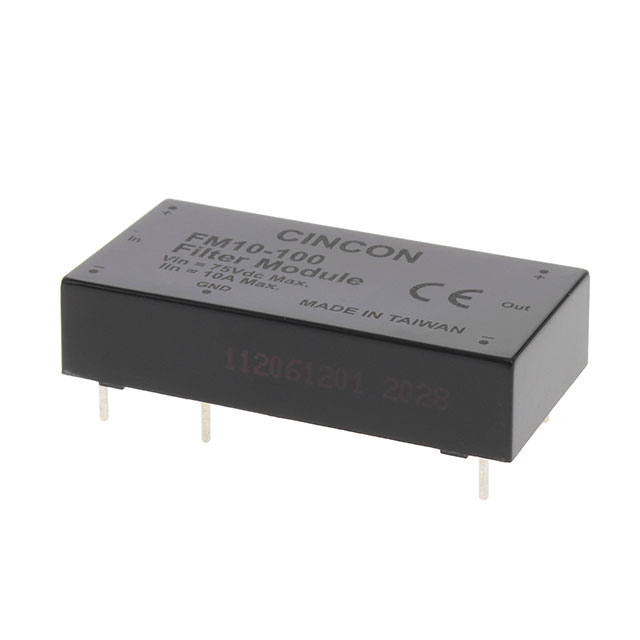

The FM10-100 is a single-phase EMC/EMI line filter module manufactured by Cincon Electronics Co. LTD, designed for PCB mounting applications. It provides electromagnetic interference suppression with a maximum input voltage rating of 75VDC and a continuous current capacity of 10A. The component functions as a passive filtering stage to ensure compliance with emission standards in DC power lines.

Power Line Filter Modules Feature Summary

• Single-stage EMI/EMC filtering architecture
• PCB pin-mount construction for direct board integration
• Designed for DC power line noise attenuation

Power Line Filter Modules Applications

• DC power supply input stages
• Industrial control systems requiring EMI suppression
• Embedded electronics with strict emission limits

Power Line Filter Modules Procurement Notes

Verify the specific datasheet version and manufacturer documentation to confirm electrical ratings and mechanical dimensions. Ensure the application voltage does not exceed the 75VDC maximum limit. Check for any RoHS or environmental compliance certificates required for your region before finalizing procurement.

Power Line Filter Modules Selection Notes

Select this component when a compact, through-hole EMI filter is needed for low-voltage DC circuits. Consider the 10A current rating and 75VDC voltage ceiling against your system requirements. Evaluate PCB space constraints due to its pin-mount form factor compared to chassis-mounted alternatives.

Power Line Filter Modules Part Context

This part belongs to the FM series of power line filters from Cincon, which includes variants like the FM20-100. These modules are distinct from AC-DC power supply modules such as the CFM or CBM series, serving specifically as passive noise suppression components rather than voltage conversion units.

Power Line Filter Modules Replacement Considerations

Public confirmed substitute part numbers are not available in the provided documentation. Verify compatibility with existing designs before considering alternative manufacturers.
