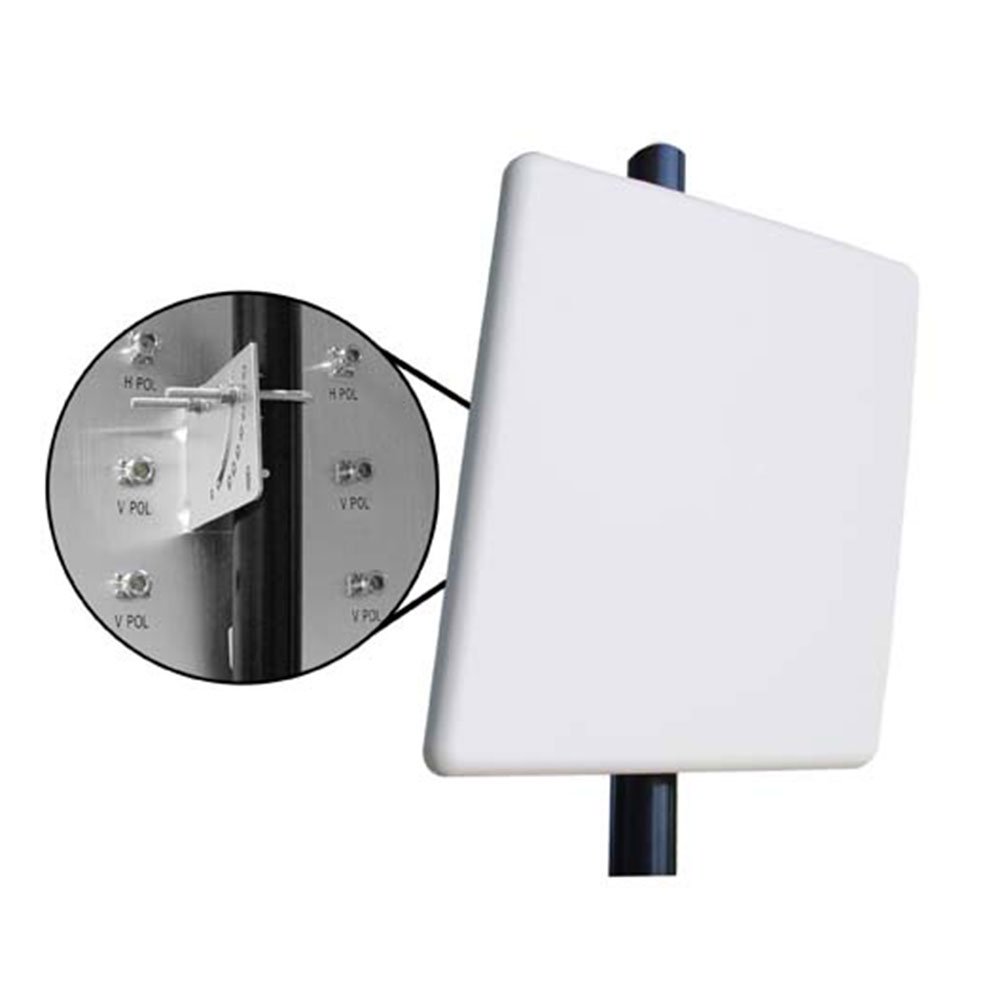

FM51FP1002 is listed in the Antennas RF range at ChipApex. The manufacturer field lists Fairview Microwave. Its product description is TYPE N JACK 2.4/4.9-5.8 GHZ SIX. Review the specifications below when checking this part for your BOM.
Antennas RF specifications for FM51FP1002
- Description：TYPE N JACK 2.4/4.9-5.8 GHZ SIX
- Series：-
- Mfr：Fairview Microwave
- Package：Bag
- RF Family/Standard：WiFi
- Frequency Group：UHF (2GHz ~ 3GHz), SHF (f > 4GHz)
- Frequency (Center/Band)：2.45GHz, 5.375GHz
- Frequency Range：2.4GHz ~ 2.5GHz, 4.9GHz ~ 5.85GHz
- Antenna Type：Panel
- Number of Bands：2
- VSWR：2
- Return Loss：-
- Gain：9dBi, 10dBi
- Features：Cable - 305mm, Cable - 1.524m, Cable - 3.048m, Cable - 7.62m
- Termination：N Type Female
- Ingress Protection：-
- Grade：-
- Qualification：-
- Mounting Type：Bracket Mount
- Height (Max)：1.000" (25.40mm)
- Applications：802.11a/b/g/n/ac, WLAN
- Power - Max：25 W
Antennas RF datasheet and documents for FM51FP1002
