Product Detailed Parameters
- Description：PHASE SHIFTER SMA 18 GHZ
- Series：-
- Mfr：Fairview Microwave
- Package：Bag
- Function：Phase Shifter
- Frequency：8GHz ~ 18GHz
- RF Type：General Purpose
- Secondary Attributes：SMA Connectors
- Mounting Type：Chassis Mount
- Package / Case：Module, SMA Connectors
- Supplier Device Package：Module
- Grade：-
- Qualification：-
Download product information
Overview

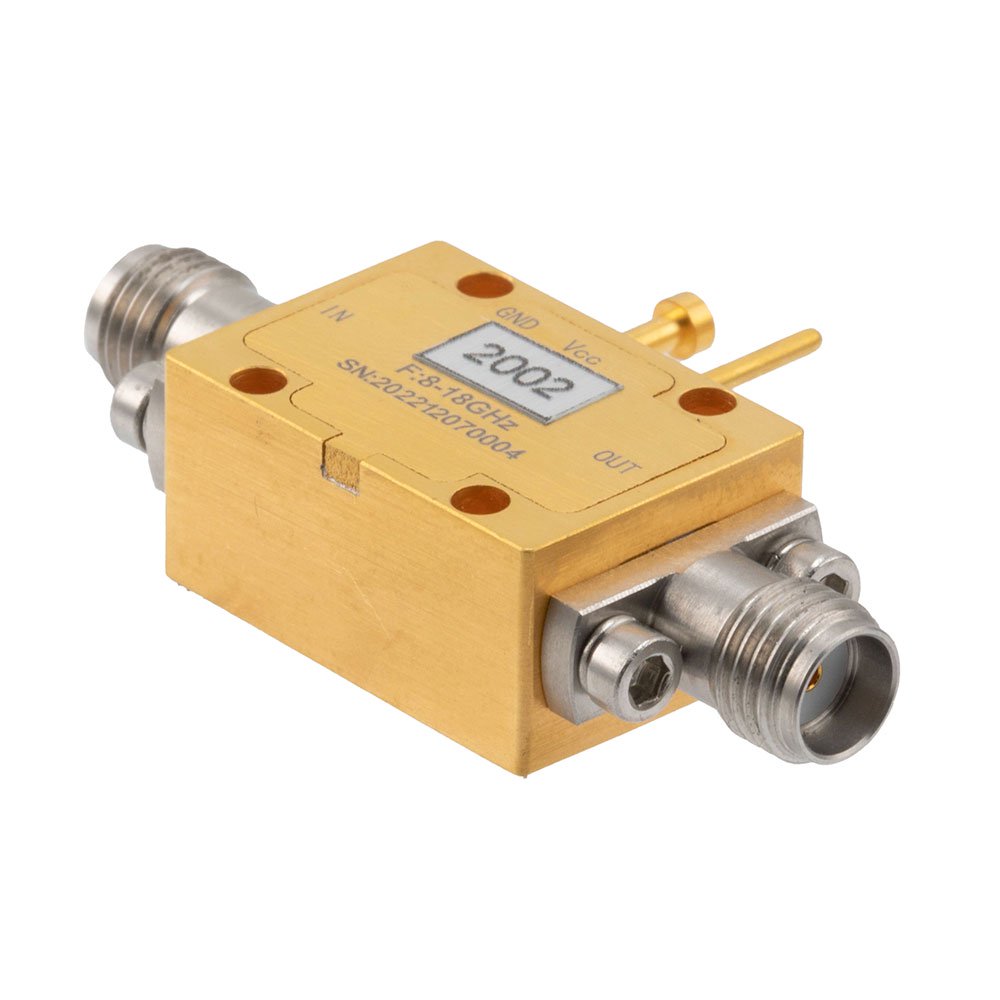

The Fairview Microwave FM82P2002 is an analog phase shifter designed for high-frequency applications. It operates within a frequency range of 8 GHz to 18 GHz and provides a full 360-degree phase adjustment capability. The device utilizes a control voltage input ranging from 0V to +13V to modulate the signal phase. This component is engineered to maintain signal integrity across its specified bandwidth, supporting precise phase alignment in complex RF systems.
Feature Summary
- Provides continuous 360-degree analog phase adjustment
- Operates effectively across the 8 GHz to 18 GHz frequency spectrum
- Utilizes a 0V to +13V control voltage interface for phase modulation
Applications
- Phased array antenna beam steering systems
- RF test and measurement instrumentation
- Wireless communication infrastructure components
Procurement Notes
Verify the specific control voltage requirements and connector types against system specifications before ordering. Confirm that the operating temperature range aligns with the intended environment. Check for any recent product change notices or obsolescence alerts from the manufacturer to ensure long-term availability and compatibility.
Selection Notes
Select this component when a wideband phase shift is required between 8 GHz and 18 GHz. Ensure the control interface supports the necessary 0V to +13V range. Consider physical size and mounting constraints if integrating into dense RF assemblies. Validate performance metrics against specific application tolerances.
Part Context
This part belongs to Fairview Microwave's signal conditioning portfolio, specifically focusing on phase shifters. These components are essential for managing signal timing and alignment in microwave and millimeter-wave systems. The FM82P2002 represents a specialized solution for high-frequency phase control tasks.
Replacement Considerations
No public confirmed substitute part numbers are available in the provided documentation. Verify compatibility with existing control circuitry if considering alternative models.
