FM82P2005

Overview

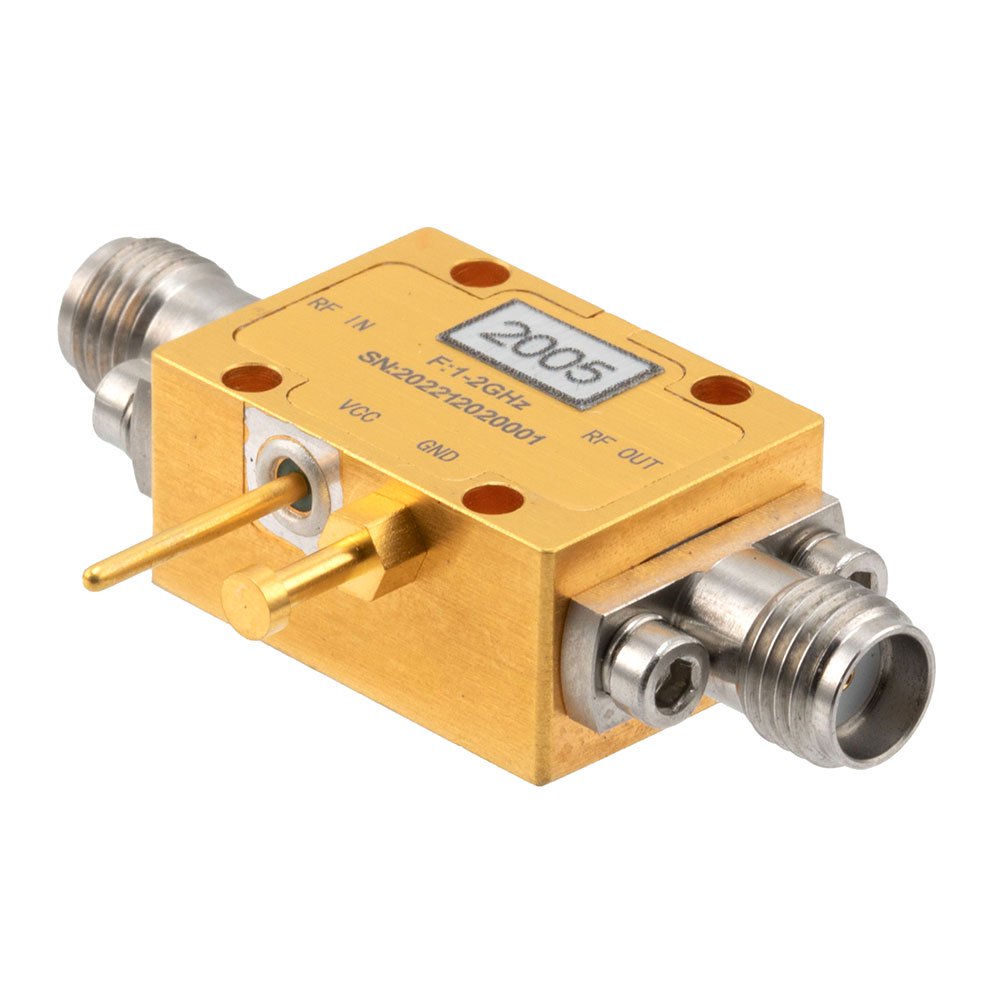

The FM82P2005 is an analog phase shifter manufactured by Fairview Microwave, designed for operation within the 1 GHz to 2 GHz frequency range. It provides a continuous 360-degree phase shift capability, controlled via an analog voltage input ranging from 0V to +12V. The device features SMA connectors and supports a maximum input power of +27 dBm. Insertion loss is specified between 4.5 dB and 5.5 dB. This component serves as a signal conditioning element for precise phase adjustment in RF systems.

Feature Summary

• Provides continuous 360-degree analog phase control across the operational bandwidth
• Utilizes simple DC voltage control interface for phase adjustment
• Engineered with SMA interfaces for standard RF connectivity
• Supports high input power levels suitable for active signal paths

Applications

• Phased array antenna beam steering systems
• RF test and measurement instrumentation requiring variable phase
• Wireless communication transceivers for signal alignment
• Radar system signal processing chains

Procurement Notes

Verify the specific datasheet version to confirm mechanical dimensions and connector gender details prior to integration. Ensure the control voltage supply matches the 0V to +12V specification exactly to prevent device damage. Confirm that the operating frequency band aligns with the 1-2 GHz requirement for optimal insertion loss performance. Check RoHS compliance status if environmental regulations apply to the final assembly.

Selection Notes

Select this component when a wide continuous phase range is required without discrete steps. The analog control allows for smooth phase transitions compared to digital alternatives. Consider the insertion loss range of 4.5 to 5.5 dB when calculating total link budget. The SMA interface ensures compatibility with standard laboratory and industrial RF cabling infrastructure.

Part Context

Fairview Microwave produces specialized RF components for testing and communications. The FM82P2005 belongs to their analog phase shifter series, distinct from digital or fixed-phase devices. It complements their broader portfolio of filters, amplifiers, and cable assemblies by providing dynamic signal manipulation capabilities for complex RF environments.

Replacement Considerations

No public confirmed substitute part numbers are available in the provided documentation. Direct replacement requires matching the 1-2 GHz frequency range, 360-degree phase shift capability, and SMA interface specifications.
