Product Detailed Parameters
- Description：PHASE SHIFTER SMA 1 GHZ
- Series：-
- Mfr：Fairview Microwave
- Package：Bag
- Function：Phase Shifter
- Frequency：500MHz ~ 1GHz
- RF Type：General Purpose
- Secondary Attributes：180° Phase Shift
- Mounting Type：Chassis Mount
- Package / Case：Module, SMA Connectors
- Supplier Device Package：-
- Grade：-
- Qualification：-
Download product information
Overview

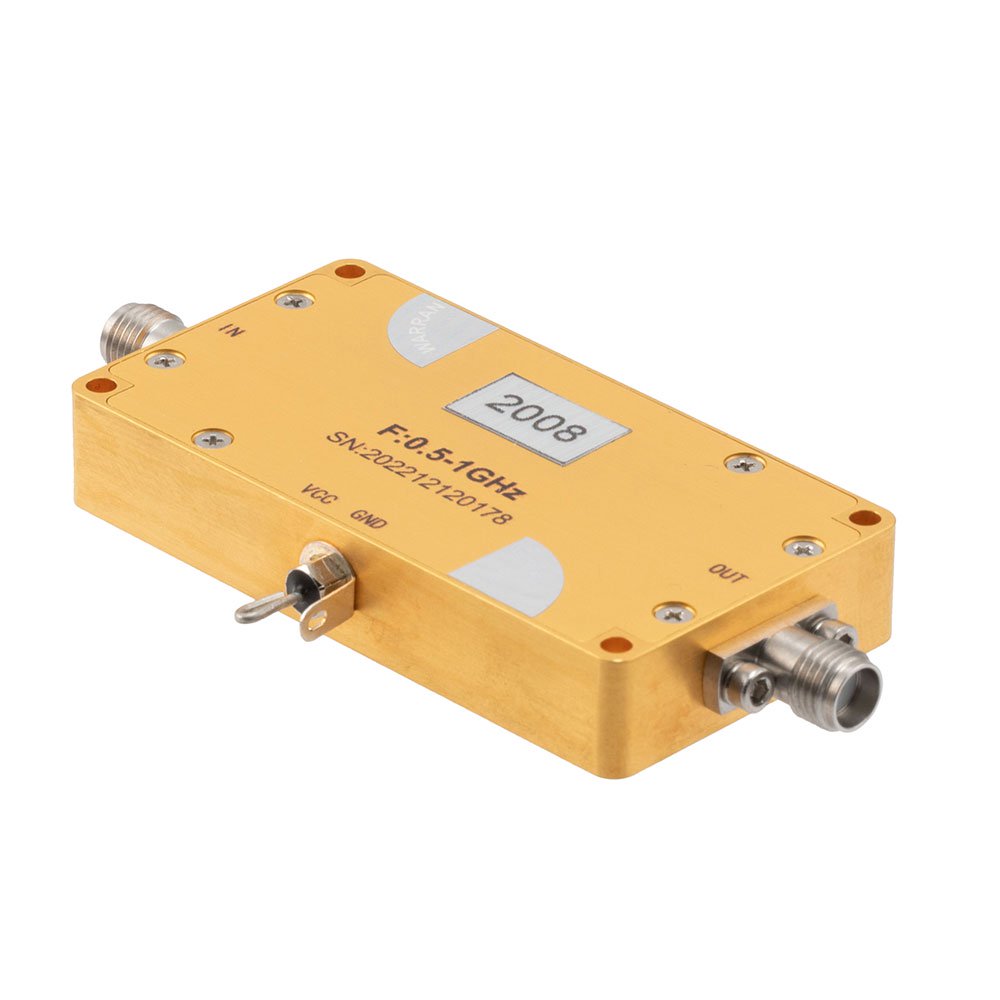

The FM82P2008 is an analog phase shifter manufactured by Fairview Microwave, designed for signal conditioning applications. It operates within a frequency range of 0.5 GHz to 1 GHz and provides a total phase shift range of 180 degrees. The device features SMA connectors and accepts a control voltage input ranging from 0V to +15V. It supports a maximum input power level of +30 dBm at the PIN port. The unit is packaged in a bag and weighs approximately 30.844 grams.
Feature Summary
- Provides continuous analog phase adjustment with a 180-degree operational range
- Operates effectively across the 0.5 GHz to 1 GHz frequency spectrum
- Utilizes standard SMA interface connectors for integration
Applications
- RF signal processing systems requiring precise phase alignment
- Antenna array beam steering mechanisms
- Test and measurement instrumentation calibration
Procurement Notes
Verify component authenticity through authorized Fairview Microwave channels or certified distributors. Confirm that the specific SMA connector gender and control voltage requirements align with your system design before procurement. Ensure handling procedures protect the sensitive analog control inputs during installation.
Selection Notes
Select this model when a 180-degree analog phase shift is required between 0.5 GHz and 1 GHz. The 0V to +15V control interface dictates compatibility with existing driver circuits. Consider the +30 dBm power rating to ensure safe operation under expected signal loads without distortion.
Part Context
This component belongs to Fairview Microwave's signal conditioning portfolio, specifically categorized under analog phase shifters. It serves as a critical element for manipulating RF signal timing in communication and radar subsystems where frequency stability within the specified band is essential.
Replacement Considerations
No public substitute part numbers are documented for this specific model. Direct replacement requires matching the 0.5-1 GHz range, 180-degree shift, and SMA interface specifications exactly.
